Danfoss Heating mat 175W/sqm 2750W 15,6sqm 1Cold 83901963

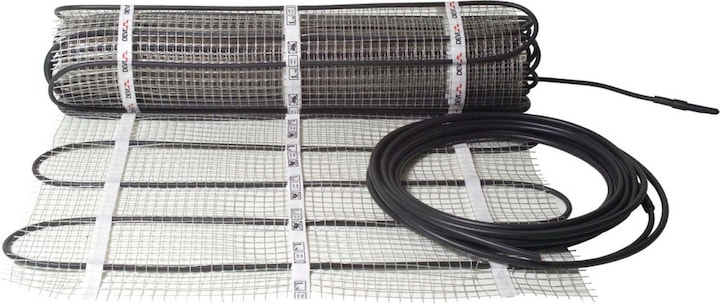

Danfoss Heating Mat DTCE-175 2750W

Manufacturer: Danfoss
Designation: Heating Mat 230V
Type: DTCE-175 2750W
With Carrier Mat: yes
Heating Cable Fixation: glued
Self-adhesive: no
Connection Power: 2750 W
Power: 175 W/m²
Heating Cable Load: 13.1 W/m
Number of Cold Leads: 1
Length of Cold Leads: 6000 mm
Suitable for Wet Rooms: yes
Suitable as Outdoor Heating: no
Suitable as Roof Heating: no
Area: 15.6 m²
Length: 20850 mm
Width: 750 mm
Thickness: 7 mm
With Controller: no
With Room Thermostat: no
With Floor Temperature Sensor: no

Danfoss Heating Mat DTCE-175 2750W: Additional Details
Heating mat with a connection cable suitable for installation in or under the screed. Suitable for use in dry, damp, or wet rooms. Features additional protective sheathing for use with RCD protection. This heating mat system is particularly suitable for installation in awkward and/or large areas, as the return of the second connection is not required. Includes factory-installed waterproof connectors and a 6 m long cold lead, heating cable according to IEC 60800, voltage: 230 V, rated limit temperature: 80°C, specific heating power: 175 W/m², resistance tolerance: +10% / -5%, minimum installation temperature: 5°C, outer diameter: 7 mm, minimum bending radius: 5 x dA, protection class: IP X7, area 15.6 m², 0.75 x 20.85 m.
