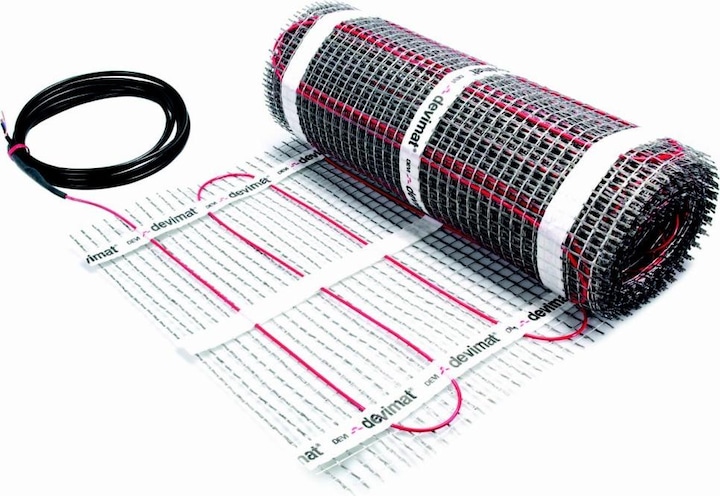

Danfoss Heating mat 200W/sqm 430W 2.1sqm 1cold 83020738

Danfoss Thin Bed Heating Mat DEVImat 200 0.5x4.2

Manufacturer: Danfoss
Description: Self-adhesive thin bed heating mat
Type: DEVImat 200 0.5x4.2
Design: Heating foil
With carrier mat: yes
Fixation of heating conductor: Glued
Self-adhesive: yes
Connection power: 430 W
Power: 200 W/m²
Heating conductor load: 15 W/m
Number of cold conductors: 1
Length of cold conductor: 4 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 2.1 m²
Length: 4200 mm
Width: 500 mm
Thickness: 3 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no

Danfoss Thin Bed Heating Mat DEVImat 200 0.5x4.2: additional details
The self-adhesive thin bed heating mat with a connection cable is pre-assembled and designed specifically for installation in leveling compound or flexible adhesive directly beneath the floor covering. Due to its low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large spaces, as the return of the second connection is not required. The heating cable, with additional protective sheath for the use of RCD protection, is applied to a plastic mesh. The length of the connection cables is 4.0 m. Cold conductor: 1 x 4 m, 1.0 mm², Voltage: 230 V, Rated limit temperature: 120 °C, Specific heating output: 200 W/m², Insulation: PVDF / FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: 5 °C, Minimum bending radius: 6 x dA, Calculation width: 50 cm, Delivery width: 48 cm, Mat height: 3.2 mm, Protection class: IPX7, Approval: EN 60335-2-96, 0.5 x 4.2 m, EAN: 5703466196014.
