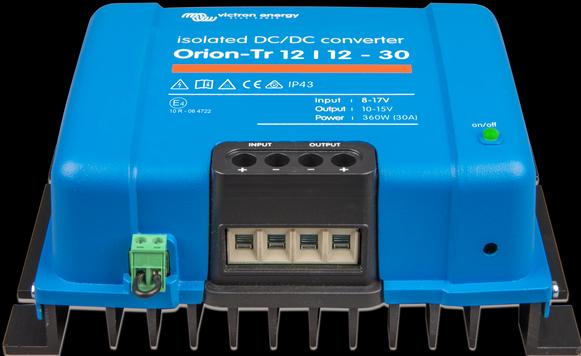

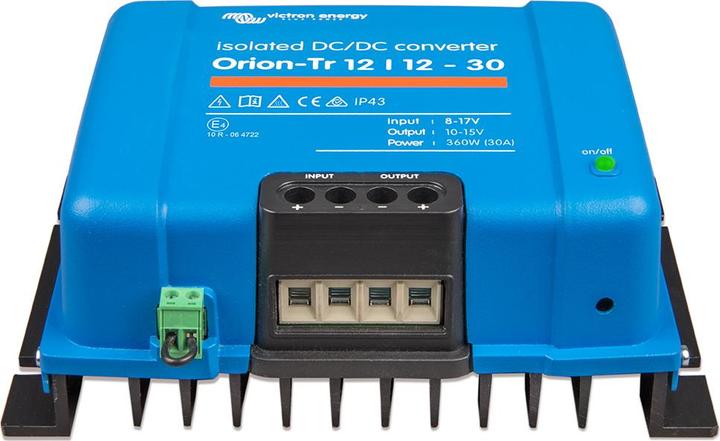

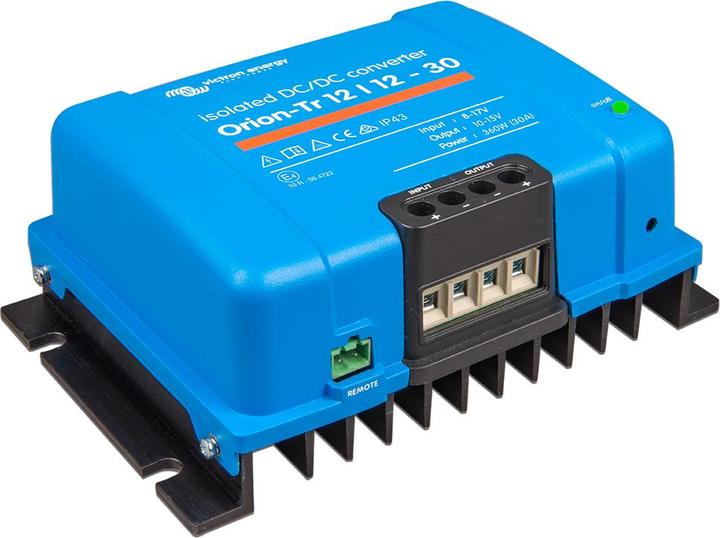

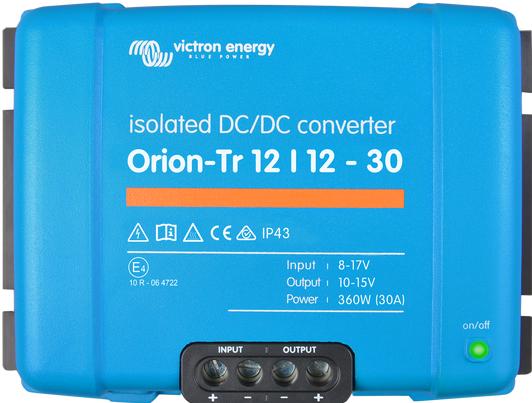

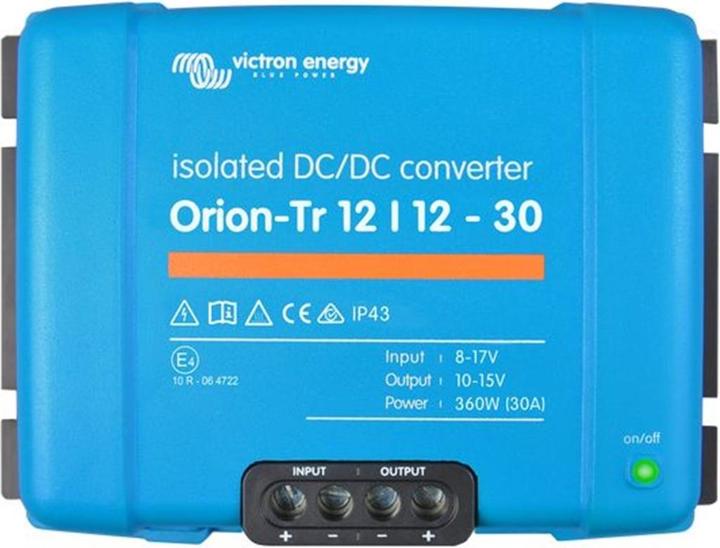

Orion-Tr DC/DC converter, isolated:
Remote on/off switching
The remote on/off circuit eliminates the need for a high-current switch on the input wiring. The remote on/off connection can be controlled with a power-saving switch or by the motor's run/stop switch (see manual).
Adjustable output voltage:
Can also be used as a battery charger For example, to charge a 12 volt starter or auxiliary battery in an otherwise 24 volt system.
All models are short-circuit proof and can be connected in parallel to increase the output current. An unlimited number of units can be connected in parallel.
IP43 protection: When the unit is installed with the screw terminals facing downwards.
Screw terminals: No special tools are required for installation.
Input fuse: Only on the 12 V and 24 V models.
Models:
12 / 24 / 48 volt
Remote on/off switching
The remote on/off circuit eliminates the need for a high-current switch on the input wiring.
The remote on/off connection can be controlled with a power-saving switch or by the motor's run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example, to charge a 12-volt starter or auxiliary battery in an otherwise 24 V system.
All models are short-circuit proof and can be connected in parallel to increase the output current.
An unlimited number of units can be connected in parallel.
input voltage | 10 V |
Output voltage | 15 V |
Power output | 360 W |
Voltage transformer type | Vehicle voltage transformer |
Length | 13 cm |
Width | 18.60 cm |
Height | 8 cm |
Item number | 23026692 |
Manufacturer | Victron Energy |
Category | Power inverters |
Manufacturer no. | ORI121240110 |
Release date | 31.5.2024 |
Sales rank in Category Power inverters | 108 of 5103 |
Colour | Blue |
Exact colour description | Blue |
Voltage transformer type | Vehicle voltage transformer |
input voltage | 10 V |
Output voltage | 15 V |
Power output | 360 W |
Electric current output | 30 A |
Country of origin | Germany, India |
CO₂-Emission | |
Climate contribution |
Length | 13 cm |
Width | 18.60 cm |
Height | 8 cm |
Weight | 1800 g |
Length | 24 cm |
Width | 20 cm |
Height | 12 cm |
Weight | 450 g |
