Victron Energy Smart Orion-Tr 12/12/30

Victron Smart Orion-Tr 12/12/30 Charge Booster

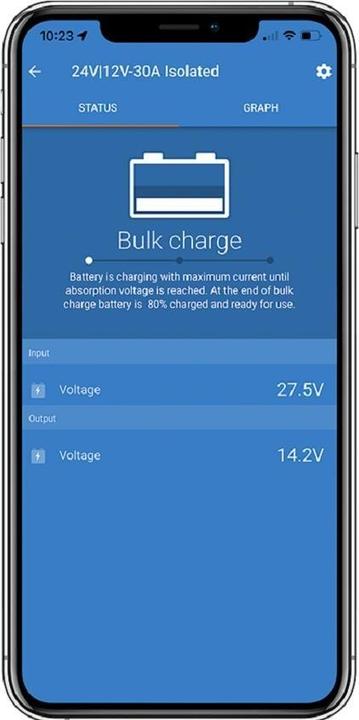

Fully configurable charge converter Orion Smart with three charging stages, ideal for campers and boats. Suitable for Bluetooth Smart monitoring, adjusting settings, and updating the charger with newly available software features, all of which can be done with any Bluetooth-enabled smartphone, tablet, or other devices.

Fully programmable battery charging algorithm (configurable) or fixed output. Intelligent generator compatibility: engine running detection. Adaptive three-stage charging algorithm: Constant current - Constant voltage - Maintenance. For lead batteries, it is important to keep the absorption time short during deep discharges to avoid overcharging the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure the battery is fully charged. For lithium batteries, the absorption time is fixed, set to two hours by default. Alternatively, a fixed output voltage can be selected.

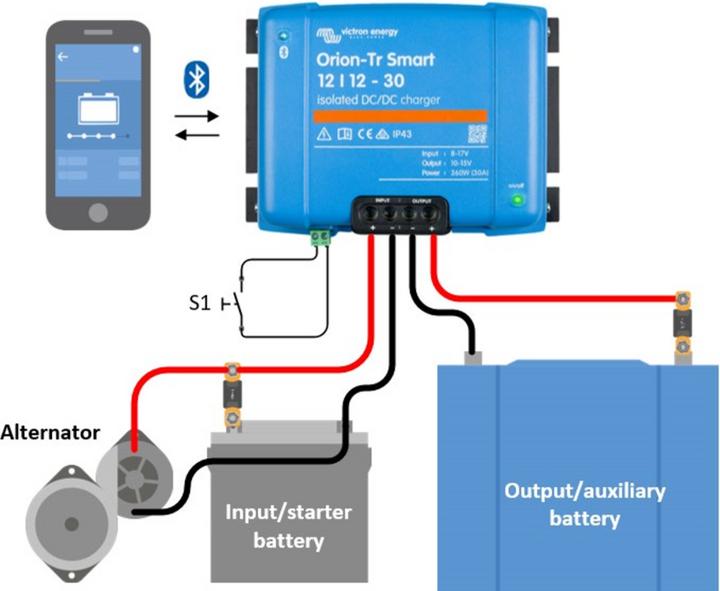

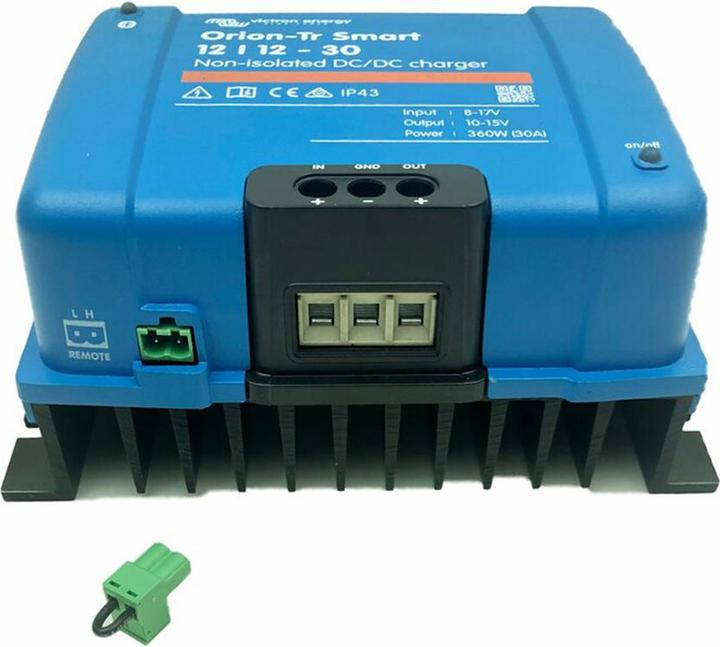

Remote on/off switching: A remote-controlled on/off switch or relay contact can be connected to the two-pole connector. Alternatively, the H (right) connection of the two-pole connector can be connected to a battery positive terminal, or the L (left) connection of the two-pole connector can be connected to the battery negative terminal (or, for example, to the vehicle chassis). All models are short-circuit proof and can be connected in parallel to increase output current. There is no limit to the number of devices that can be connected in parallel.

Overtemperature protection: The output current is reduced at high ambient temperatures. Protection class IP43 when the screw terminals on the device are installed facing downwards. No special tools are required for installation. Input fuse (non-replaceable).

Delivery includes: 1 x charge booster, 1 x operating manual.
