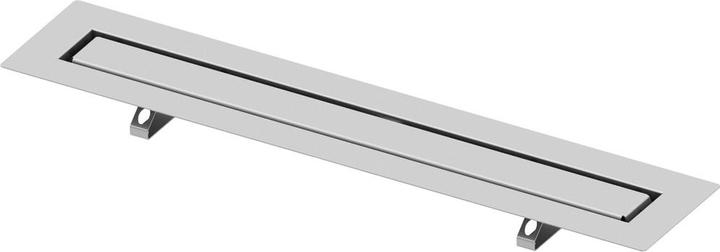

TECE Drainline shower channel for natural stone incl. stainless steel support (1500 mm)

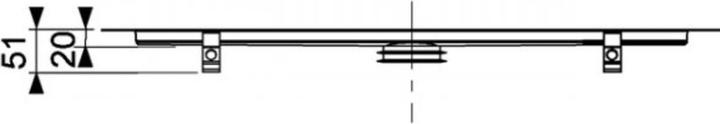

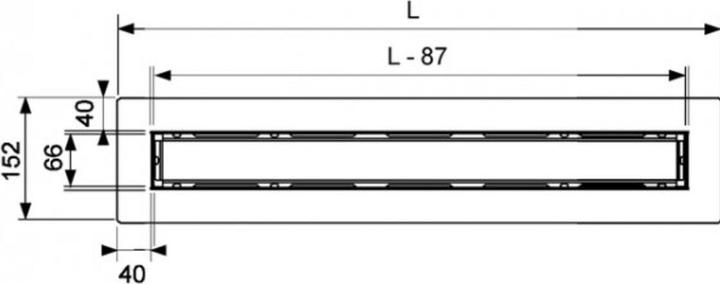

Comprising a trough body made of stainless steel, material 1.4301 (304), with a moulded 40 mm wide insulating flange for on-site sealing. It includes a connection bracket for anchoring in screed and for mounting optional mounting feet, with a central connection piece for drain with internal gradient to improve water runoff. The stainless steel support plate, made of material 1.4301 (304), is designed for insertion into the channel body. The trough length is 1500 mm, and the tube length including the insulating flange is 1535 mm.
