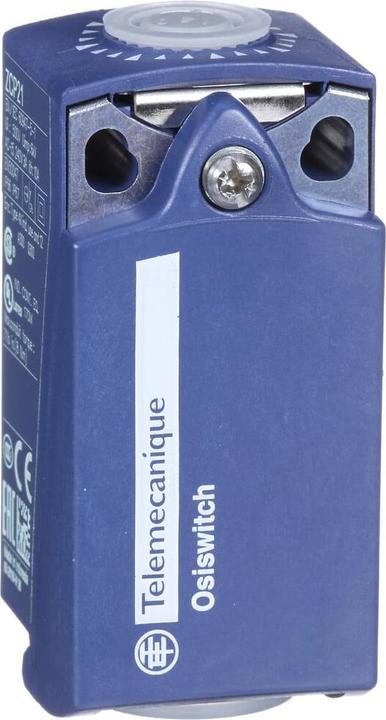

TE Sensors Limit Switch body Plastic NO+NC Snap

Telemechanique Sensors Auxiliary Switch Housing ZCP21

Manufacturer: Telemechanique Sensors
Designation: Compact auxiliary switch housing
Type: ZCP21
Width of the sensor: 31 mm
Diameter of the sensor: 0 mm
Height of the sensor: 65 mm
Length of the sensor: 30 mm
Rated operational current ie at AC-15, 24 V: 0 A
Rated operational current ie at AC-15, 125 V: 0 A
Rated operational current ie at AC-15, 230 V: 1.5 A
Rated operational current ie at DC-13, 24 V: 0 A
Rated operational current ie at DC-13, 125 V: 0 A
Rated operational current ie at DC-13, 230 V: 0.1 A
Switching function: Snap action
Latching switching function: no
Electronic output: no
Forced opening: yes
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Interface design: none
Interface design for safety-related communication: none
Housing design: Rectangular
Material of the housing: Plastic
Coating of the housing: Other
Design of the actuating element: none
Orientation of the actuating element: Other
Design of the electrical connection: Other
With status indicator: no
Suitable for safety functions: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Ambient temperature during operation: -25 to 70 °C
Protection class (IP): IP66/IP67

Auxiliary switch housing for position switches XCK P. ZCP position switch housing. Switching contacts Ö + S, switching principle snap. Encapsulated in plastic, dimensions W/D/H 30 x 31 x 65 mm (actuator). Protection class IP 66, IP 67 and IK 04.
