Stiebel Eltron Wpm

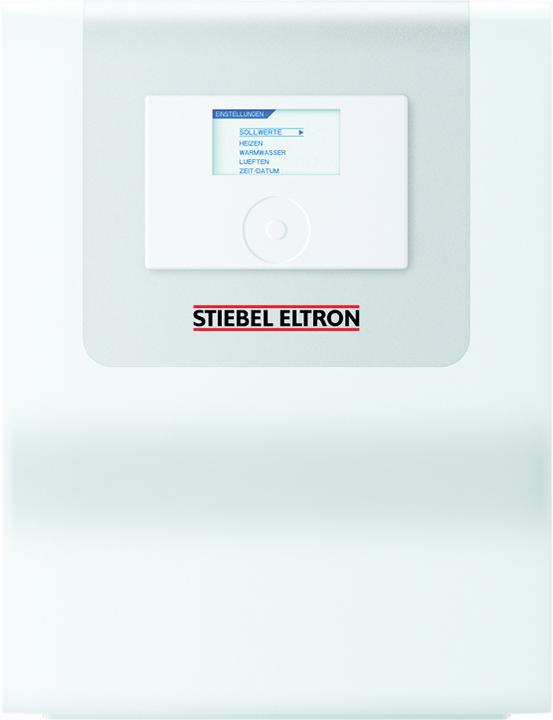

Stiebel Eltron Energy Control WPM

Manufacturer: Stiebel Eltron
Designation: Energy Control Heat Pump Manager
Type: WPM
Boiler Control: Yes
Number of Boilers: 4
Boiler Connection: 4-wire
Number of Mixing Groups: 2
Number of Underfloor Heating Circuits: 3
Air Treatment Control: No
Air Heater: No
Air Cooler: No
Air Humidifier: No
Air Afterheater: No
Drinking Water Regulation: Yes
Boiler Switching Valve Control: No
Split Unit Control: No
Air Curtain Control: No
Swimming Pool Control: No
Heat Pump Control: Yes
Exhaust Fan Control: No
Exhaust Fan Control Signal: None
Number of Analog Outputs: 2
Supply Voltage: 230 V
With Display: Yes
With PC Connection: No
Communication Bus: Other
Communication Protocol: Other
With Supply Sensor: No
With Outdoor Sensor: No
With Room Sensor: Yes
With Timer: Yes
Program Timer: Day/Week
Suitable for Wall Mounting: Yes
DIN Rail Mounting: No
Standalone Operation: Yes
Couplable: Yes
Protection Class (IP): IP21
Height: 400 mm
Width: 310 mm
Depth: 100 mm
Temperature Controller Class: VI

The Heat Pump Manager WPM is the main controller in the system. Through the built-in control unit, one direct and two mixed heating circuits can be regulated, and two heat pumps can be operated in cascade. When the WPM is combined with the Internet Service Gateway ISG, the heat pump can be integrated into a home network or controlled via mobile devices. Direct connection of highly efficient circulation pumps is possible via relay outputs or PWM outputs. Additionally, the WPM offers a fault contact for external detection of system faults. The drip-proof wall housing with ample installation space provides sufficient room for electrical installations and other components such as DIN rail relays. The connection is facilitated by the thoughtful cable management.
EAN: 4017212347270.
