Diameter
Length
Product details

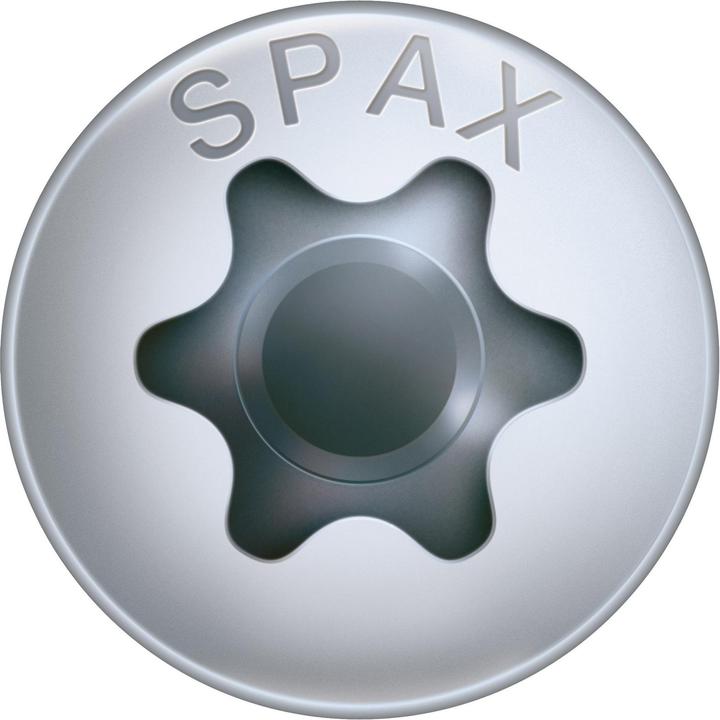

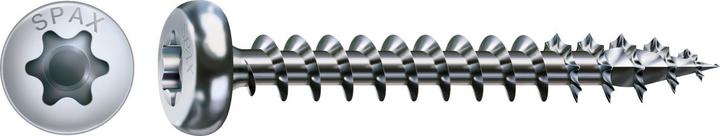

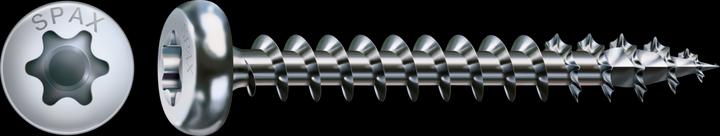

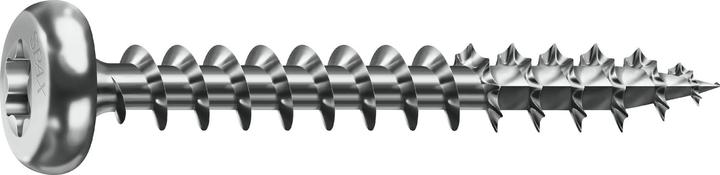

The SPAX typical drive T-STAR plus is a so-called internal hexagon. This shape increases the contact area of our T-STAR plus, allowing the T-STAR plus bits to fit optimally in the screw head. The best possible power transfer from the screwdriver to the screw through T-STAR plus enables quick work, significantly more efficiently than with any other drives. Our universal screw with a pan head is an example of how screw connections can also look good when needed. The spherical screw head with T-STAR plus or cross-slot Z-drive is suitable for the visible fastening of metal fittings to wood, with the underside of the head lying flat against the metal. The WIROX surface adapts to the color of the respective silver-colored metal fittings. Unlike partial threads, the full thread extends over the entire length of the screw. The more thread turns a screw has, the greater the tensile and compressive forces that can be transferred from the screw to the wood. Our full-thread screws are primarily used for highly stressed wood connections. The term 4CUT refers to the square shape of the screw tip. These edges displace the wood fibers during insertion and create space for the core diameter of the screw. This reduces the spreading pressure exerted by the core in the wood and prevents splitting near the edges. The necessary torque of the cordless screwdriver is also reduced, as the core of the screw does not have to "squeeze" into the wood. With WIROX, SPAX has developed a coating that is far superior to galvanization in terms of corrosion protection. WIROX does not use chromium (VI), and the screws remain just as load-bearing and environmentally friendly even after years in outdoor areas not directly exposed to the weather.
type of screw | Chipboard screw |
bolt diameter | 3.5 mm |
head shape | Round head |
Screw length | 16 mm |
Version | Multipack |
Size (D x L) | M3.5 x 16 |
Item number | 12265943 |
Manufacturer | Spax |
Category | Screws |
Manufacturer no. | 3366886 |
Release date | 21.8.2019 |
External links |
Colour | Silver |
Exact colour description | WIROX |
Metal type | Steel |
Material group | Metal |
Material | Galvanised steel |
surface finish | Galvanized |
type of screw | Chipboard screw |
Version | Multipack |
thread type | Full thread |
head shape | Round head |
impetus | Pin-torx |
Output size | T15 |
Suitable for | Metal |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

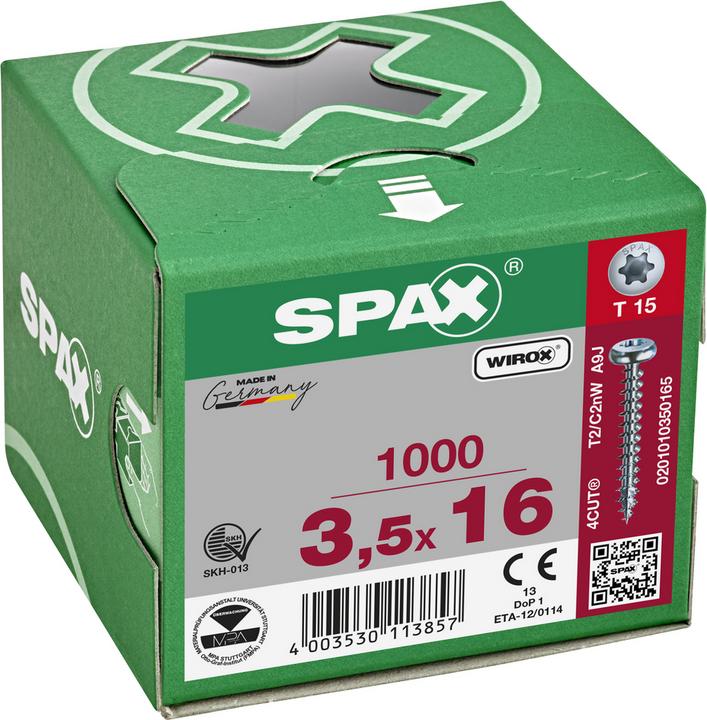

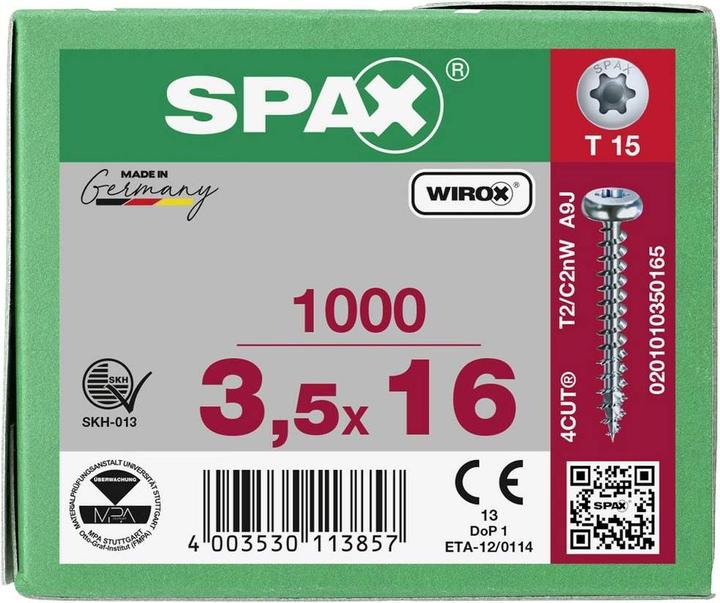

Scope of delivery | 1000 pieces, universal screw, 3.5 x 16 mm, fully threaded, semicircular head, T-STAR plus T15, 4CUT, WIROX - 0201010350165 |
Items per sales unit | 1000 Screws per piece |
Size (D x L) | M3.5 x 16 |
bolt diameter | 3.5 mm |
Screw length | 16 mm |
thread length | 15 mm |
