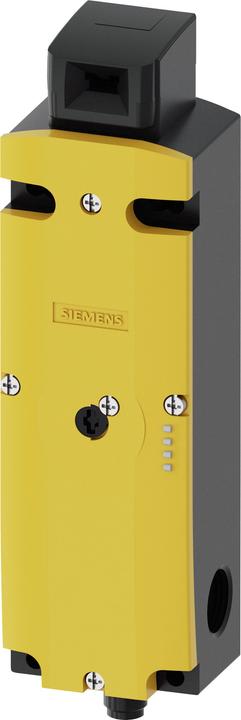

Siemens Safety position sha.

Safety position switch with holding mechanism, holding force 1300 N, 5 starting devices, plastic housing, M12 connector, integrated ASIsafe, high protection class IP69, IEC 60529. Channel 1 = actuator 2Ö according to the principle of 2v2 evaluation, Channel 2 = magnet 1Ö, spring force locked, auxiliary release at the front, magnet voltage AC/DC 24 V. No additional 24 V supply is required. Monitoring actuator 2Ö/1S, monitoring magnet 2Ö/1S. The corresponding separate actuator 3SE5000-0AV0./-0AW5 must be ordered separately. Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-Interface bus system. The mechanical safety switches are compact due to integrated ASIsafe electronics, which require low power consumption. 3D-coded actuators ensure high protection against manipulation. LEDs indicate the current status of the device. The switches are suitable for the highest safety requirements according to PL e or SIL 3. Device variants are also available in high protection class IP69K. Various housing sizes in plastic or metal are available. Additionally, variants with separate actuators, with holding mechanism, or as safety hinge switches are offered. A range with high protection class IP69K completes the portfolio. Depending on the version, accessories such as drive heads, separate actuators, connectors, and other mounting and connection accessories are available. Safety is a SIRIUS business.
