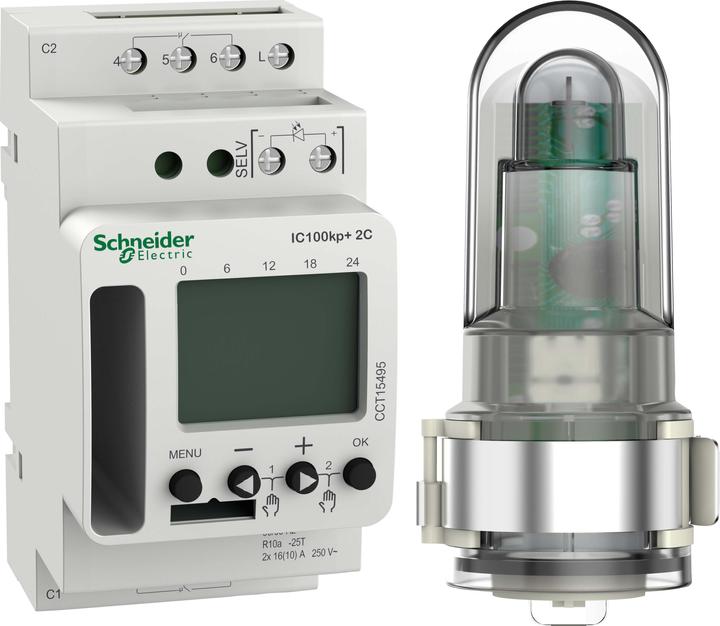

Schneider Electric SE CCT15495 Attenuation switch IC100kp+

Dusk switch for brightness and time-dependent control of lighting systems. The lighting system is activated as soon as the set brightness threshold is fallen below or the time control allows the relay to close. Programming is done on the device or via the smartphone app Acti 9 Light and Time Switch using a Bluetooth stick. The Bluetooth stick also serves as a memory card. Programmable via PC using the programming kit CCT15860. CCT15494 External input as a secondary station. Adjustable threshold from 1-99,000 Lux. Adjustable delayed switching on and off from 0 to 5959 minutes. Quick guide included in the storage compartment. For mounting on TH35 DIN rails according to EN 60715. Functions: holiday function, time-limited or permanent deactivation of switching functions, automatic or manual switching from summer to winter time, operating hour counter, display of operating hours per channel, continuous display on the LCD of hours and minutes, day of the week, status of the output contact and current program, backlighting of the display. Rated voltage AC 230 V, -15 %/+10 %, 50/60 Hz. Switching capacity max. 16 A, AC 250 V, cos phi 1, 10 A, AC 250 V, cos phi 0.6. Minimum switching capacity 10 mA, AC 230 V, 100 mA, AC/DC 24 V. Contact is potential-free. Standby power 0.3 W. Incandescent lamp load 2600 W. Halogen lamp load 2600 W. Non-compensated fluorescent lamp load 2300 VA, series compensated 2300 VA, parallel compensated 730 VA (80 µF). Compact fluorescent lamps 170 W. LED < 2 W 30 W. LED > 2 W 200 W. Connections screw terminals, rigid/flexible 2x0.5 - 2.5 mm², with ferrule max. 1x2.5 mm². Control elements 4 buttons for menu navigation. Time accuracy 7 +/- 0.25 s/day (25 °C). Time reserve 10 years. Protection class device IP 20. Device width 2.5 TE approx. 45 mm. Delivery includes external light sensor CCT15260.
