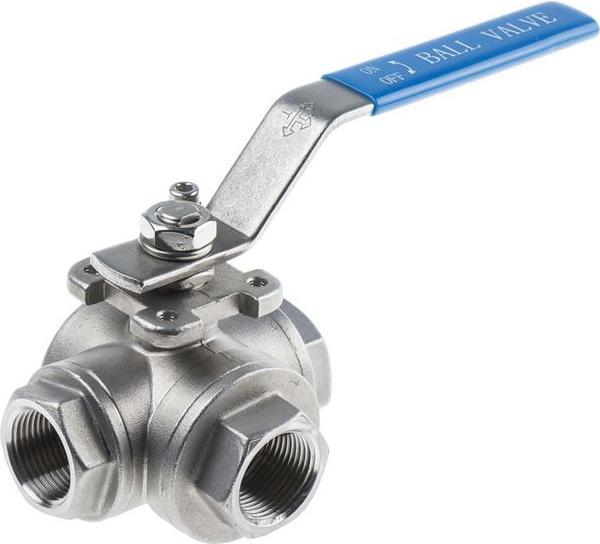

Rs Pro S/steel T port ball valve,3/4in BSP F
Only 2 items in stock at third-party supplier
Product details
Threaded connection: BSPP 3/4
Mounting type: With thread
Housing material: Stainless steel
Thread size: 3/4 inch
For use with: Gas, oil, water
Connection size inch: 3/4 inch
Handle colour: Blue
Ball material: Stainless steel
Maximum operating pressure bar: 63 bar
Handle material: Stainless steel
Handle type: Lever
Quarter-rotation ball valves made of stainless steel, L- and T-connection. RS Pro ball valves with stainless steel L and T ports are used for flow control and are an excellent choice for shutdown applications. These ball valves are durable and provide excellent performance even after a long period of time. Available in a variety of sizes. Operating temperature range: -15 to +232 C. Pressure rating WOG: 68 bar. Ball and stem: AISI 316 stainless steel. Gland nut, handle, stop-bolt and lock plate: AISI 304 stainless steel. Body seal, seal, thrust washer and stem pack material: PTFE. Handle washer-bolt material: ASTM A36.
Material | Stainless steel |
Sanitary valve type | Ball valve |
Connection thread | 3/4" |
Length | 262 mm |
Diameter | 101.60 mm |
Item number | 10315317 |
Manufacturer | Rs Pro |
Category | Valve |
Manufacturer no. | 4991950 |
Release date | 15.1.2019 |
External links |
Material | Stainless steel |
Material group | Metal |
Sanitary valve type | Ball valve |
Connection thread | 3/4" |
Number of connections | 3 |
Max. Operating pressure | 68 bar |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 262 mm |
Width | 258 mm |
Diameter | 101.60 mm |
Height | 89 mm |
