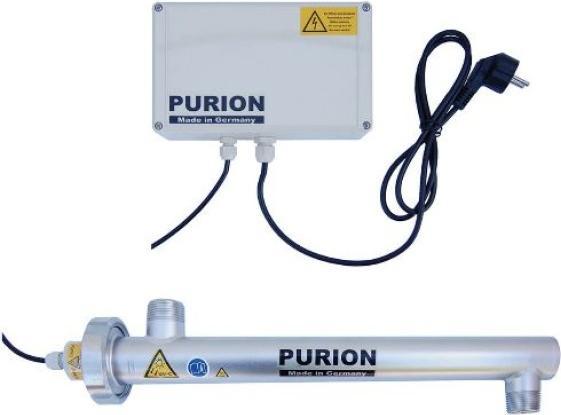

Purion 1000/12 E T

The PURION® 1000 system is available in electropolished stainless steel. It is used for the sterilization of drinking water for flow rates of up to 1000 l/h and a transmission (or turbidity) of the water of at least 90% per cm. The UV lamps used are characterized by a long service life, high disinfection performance, and low energy consumption, while the compact design allows easy and tool-free lamp removal and replacement, for example, at the end of the lamp's service life. The quartz immersion tube can also be removed or fitted without tools for cleaning purposes. The water to be treated flows through the housing and is channeled along the quartz immersion tube in which the lamp is mounted. The small water film thickness of only 7.5 mm, i.e., the distance between the UV light outlet on the quartz tube surface and the inside wall of the housing, guarantees optimum penetration of the water by the UV light.

Advantages:

• No chemicals enter the water to be disinfected
• No odor or taste impairment
• Low-maintenance operation
• Low operating costs

Technical data:
Type: PURION® 1000 E T 17 W
Throughput: 1000 L/h drinking water
UVC transmission: 90% T1 cm
Water temperature: 2ºC to 40ºC
Reactor: Stainless steel 1.4571
Connection: Thread R 1"
Seal: FPM
Dimensions (L x Ø in mm): 420 x 42
Flange distance: 340 mm
Weight: 2.8 kg
Emitter utilization time: 10,000 h
Number of emitters: 1
Dose: 400 J/m²
Temperature max.: 40ºC
Operating pressure max.: 10 bar
Enclosure protection class: IP 65
Electrical connection: 12VDC plug open
Power: 17 W
Fuse protection: 10 A
Signal input: Operating hours counter
Display: Permanent light (green LED) at < 95% of the guaranteed service life
Pre-alarm (yellow LED) at > 95% < 100% of the guaranteed service life
Main alarm (red LED) guaranteed service life is exceeded
Optional signal output: optional potential-free contact for LEDs (100mA)

Attention: It must be ensured on site that the flow rate of 1000 litres/hour is not exceeded. Data sheet service life monitoring.
