Oventrop OV line shut-off valve Hydrocontrol ATR PN 16 2 x AG u union nut DN 20 1Zol
Delivered between Tue, 10.6. and Sat, 28.6.
Only 2 items in stock at supplier
Only 2 items in stock at supplier
Product details

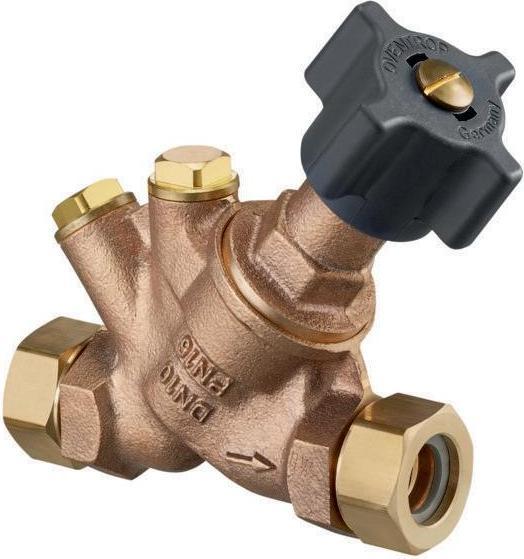

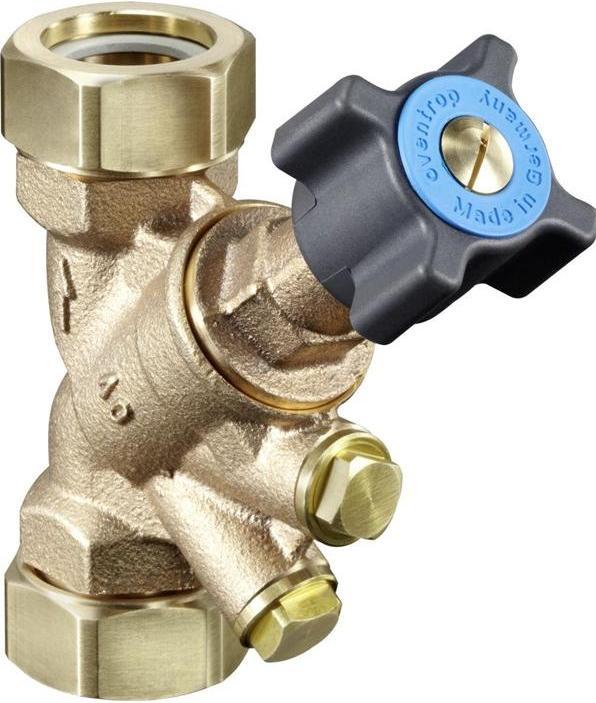

With connections on both sides for classic measuring technology (closed with blind plugs) - without presetting. Housing and head piece made of gunmetal. Stem and plug made of dezincification-resistant brass. Max. operating pressure: 25 bar (PN 25). Operating temperature: -20 to +150 °C.
More technical features:
- Max. medium temperature (continuous operation): 150 °C
- With coupling connection 2: Yes
- With coupling connection 1: Yes
- Min. medium temperature (continuous operation): -20 °C
- Height of axis: 100 mm
- Pressure stage article: PN 16
- Housing material: Bronze
- With flow measuring point: Yes
- Material grade: Bronze (Rg 5)
- Surface protection: Untreated.
Material | Bronze |
Sanitary valve type | Shut-off valve |
Connection thread | M16 |
Diameter | 20 mm |
Item number | 36194969 |
Material | Bronze |
Material group | Metal |
Sanitary valve type | Shut-off valve |
Connection thread | M16 |
Number of connections | 2 |
Max. Operating pressure | 25 bar |
Min. operating temperature | -20 °C |
Maximum operating temperature | 150 °C |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Diameter | 20 mm |
Specifications may include unverified machine translations.
