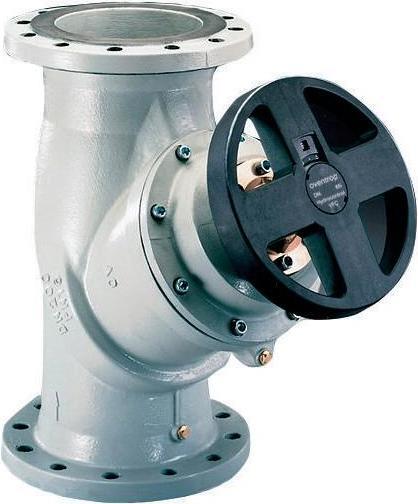

Oventrop OV line regulating valve Hydrocontrol VFC PN 16, grey cast iron, flange/DIN DN 300

Ratings
Currently out of stock

Product details

The OV Strangregulierventil Hydrocontrol VFC PN 16 is a high-quality control valve made of robust gray cast iron. It is designed for use in heating systems and provides reliable flow regulation through differential pressure measurement. With a nominal inner diameter of DN 300 and a pressure rating of PN 16, this valve is suitable for various applications. The stepless pre-setting allows for precise flow adjustment, while the secured and easily controllable setting ensures simple handling. The valve is equipped with two measuring valves G 1/4" that support accurate flow determination. The operating height of 515 mm and the diameter of the handwheel at 300 mm provide user-friendly operation. The valve is suitable for heating water and offers a maximum medium temperature of 150 °C and a minimum medium temperature of -10 °C.

  • Flanged connection on both sides according to DIN EN 1092-2
  • Stepless pre-setting for precise flow regulation
  • Two measuring valves G 1/4" for flow determination
  • Robust housing made of cast iron GG 25 (GJL-250)
  • With a stand indicator for easy readability.

Key specifications

Area of use
Water conduit
Metal type
Cast iron
Item number
22167997

General information

Manufacturer
Oventrop
Category
Sanitary installation accessories
Manufacturer no.
1062658
Release date
13.9.2022

Material

Material group
Metal
Metal type
Cast iron
Material
Gray iron

Installation accessories Features

Area of use
Water conduit

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Diameter
300 mm
