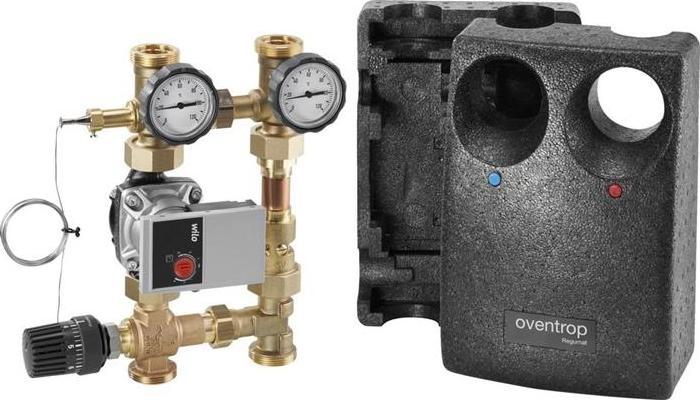

Oventrop OV Kessel-Anbindesys Regumat RTA-130 TOP DN 25 with Wilo Yonos PARA 25/6 RKC

For mounting solid fuel boilers on piping systems, this unit features an integrated three-way mixing valve with a temperature controller to raise the return temperature. It includes a circulating pump, a ball valve with a thermometer, a three-way mixing valve, and a temperature controller with an immersion sensor. The adjustment range is 40-70 °C, and it comes with a flanged pipe and a stop valve.

Additional technical features include:

• Connection: 1 1/2 inch
• Width: 310 mm
• Height: 364 mm
• UBA positive list mark: No
• Expansion vessel connection: No
• Automatic venting: No
• Filling and draining tap: No
• Pressure gauge: No
• Non-return valve: Yes
• Safety valve: No
• Thermometer: Yes
• Circulation pump: Yes
• Thermal insulation: Yes
• Depth: 197 mm
• Max flow rate: 3.9 m³/h.
