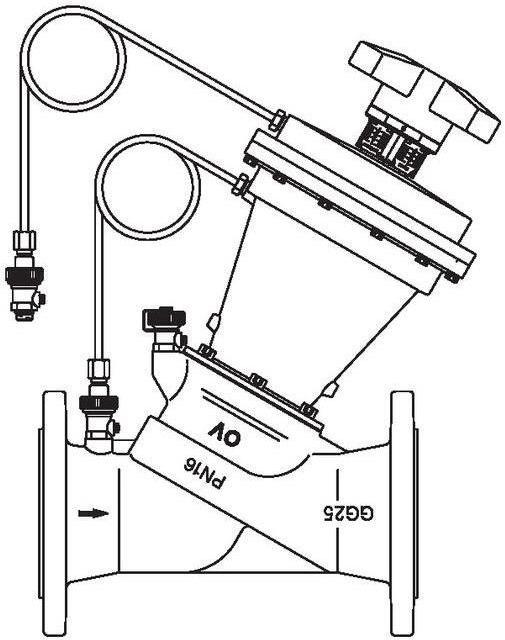

Oventrop OV differential pressure regulator Hydromat DFC PN 16, 200-1000 mbar, flange DN 65

With connection kit and drain. Flange connection on both sides according to DIN EN 1092-2. All functional elements on the handwheel side. Proportional regulator operating without auxiliary power. For use in return flow. Operating temperature: -10 to +120 °C. Housing made of cast iron. Additional technical features include: lockable, connection 1 flange, connection 2 flange, handwheel operation, pressure stage article PN 16, pressure stage flange PN 16, adjustable pressure difference, adjustment range 20 kPa, height 375 mm, Kvs value 52, diaphragm controlled, measuring connection adapter, minimum medium temperature (continuous operation) -10, with drain valve, with impulse line, with coupling connection 1, with coupling connection 2, with flow limiter, nominal diameter DN 65, surface protection other, set point indication, material quality cast iron GG 25 (GJL-250), maximum medium temperature (continuous operation) 120.
