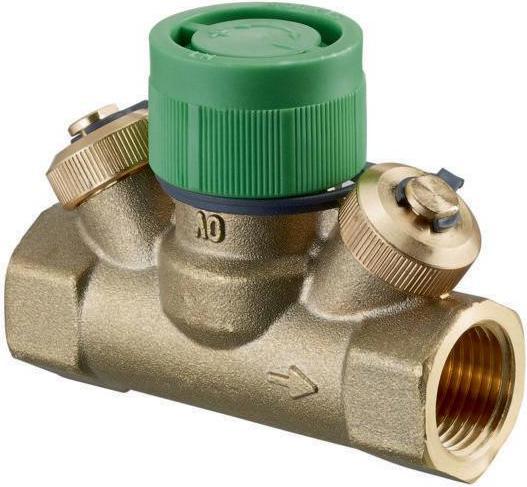

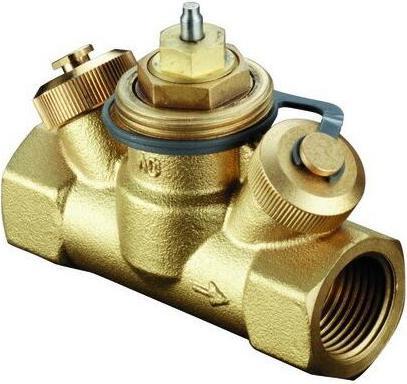

Oventrop OV control valve Hycocon HTZ 2 x MG according to EN 10226 DN 32 1 1/4inch IT

Ratings
BrandMore from Oventrop
Need a last-minute gift?Discover our instantly available digital vouchers
Delivered between 14.2.2026 and 5.3.2026
free shipping

Product details

High kv-value. Housing and head piece made of brass resistant to dezincification. Features an infinitely adjustable valve insert for large flow rates and eco measuring technology. Includes measuring and drain valves mounted on both sides. Maximum operating pressure: 16 bar (PN 16).

Other technical features:

  • Operating height: 48mm
  • Maximum medium temperature (continuous operation): 120°C
  • Coupling connection 2: No
  • Coupling connection 1: No
  • Extended measuring nipples: No
  • Nominal inside diameter: DN 32
  • Suitable for hot drinking water: No
  • Minimum medium temperature (continuous operation): -10°C
  • Diameter handwheel: 33.5mm
  • Suitable for drinking water: No
  • With thermometer: No
  • Thermostatic: Yes
  • With impulse line connection: No
  • Pressure stage article: PN 16
  • Angle spindle: 90°
  • Motor controlled: No
  • Material of housing: Brass
  • Operating device: Static
  • With level indicator: No
  • Manual operation: No
  • Suitable for heating water: Yes
  • With measuring nipple: No
  • With drain valve: Yes
  • With measuring connection: Yes
  • KIWA test seal: No
  • Material quality: Brass, dezincification resistant (DZR)
  • Surface protection: Untreated.

Key specifications

Accessory type
Valve
Area of use
Water conduit
Metal type
Brass
Item number
22168352

General information

Manufacturer
Oventrop
Category
Sanitary installation accessories
Manufacturer no.
1068570
Release date
13.9.2022

Colour

Colour
Silver

Material

Material group
Metal
Metal type
Brass
Material
Brass

Installation accessories Features

Accessory type
Valve
Area of use
Water conduit

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Diameter
33.50 mm

30-day right of return
24 Months Warranty (Bring-in)
