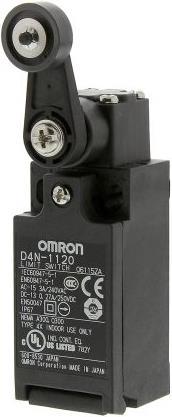

Omron Industrial Automation Limit switch

Actuator type: Roller lever
Actuator included: Yes
Contact configuration: Normally open / Normally closed
Switching function: Snap action
Protection class: IP67
Connection type: Screw fixing
Number of contacts: 2
Number and position of contacts: 1-pole changeover contact
Series: D4N
Number of cable entries: 1

This D4N series safety limit switch is TÜV EN60947-5-1 approved for direct opening, and complies with UL508, CSA C22.2 No. 14, CCC (CQC) GB14048.5, EN50047, and EN1088 (slow action models only). It serves as a replacement for the Omron D4D-N series limit switch. While the functionality remains unchanged, the housing length has increased by 4 mm, which does not affect the position of the actuator. It features an NC contact for the safety circuit and an NO contact for the control circuit (1-pole changeover switch). The contact rating is 10 A continuous. The head can be positioned in 4 different orientations as needed. The protection class is IP67, and the cable entry is PG13.5. The ambient operating temperature ranges from -30 to +70°C. This product complies with the Machinery Directive and the Low Voltage Directive.
