OBO Bettermann Screw connection

OBO Bettermann V-TEC VM12 SW cable gland

Manufacturer: OBO Bettermann
Designation: Cable gland, fully metric
Type: V-TEC VM12 SW
Thread type: Metric

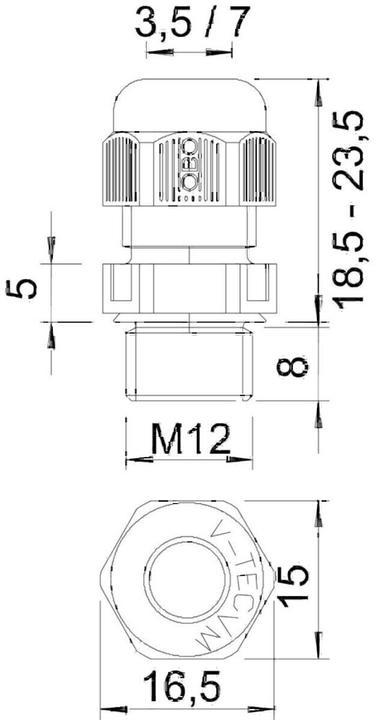

Nominal thread size metric/PG: 12
Thread pitch: 1.5 mm
Thread length: 8 mm
Width across flats: 15 mm
Hexagonal corner size: 16.5 mm
Suitable for cable diameters: 3.5 to 7 mm
Material: Plastic
Material grade: Polyamide (PA)
Surface protection: Untreated
Halogen-free: Yes
Glass-fibre reinforced: No
Protection class (IP): IP68
Impact-resistant: No
Colour: Black
Bending protection: No
With locknut: No
Version: Straight
Multiple sealing insert: No
Flat cable gland: No
With strain relief: Yes
Type of seal: Sealing ring
Separable gland: No
Operating temperature: -20 to 65 °C
Explosion-tested design: No
For Ex zone gas: Without
For Ex zone dust: Without

OBO Bettermann cable gland V-TEC VM12 SW: more details
The quickest and most convenient way to provide strain relief and sealing with cable glands on cable junction boxes and enclosures is the tried-and-tested V-TEC VM cable glands from OBO. With the integrated sealing lip and special OBO lamella technology, protection class IP68 is achieved. Strain relief and tightness are tested in accordance with DIN EN 50262. The connection threads are metric and can therefore be used universally. Once screwed in, the installation lasts forever: the optimum thread adaptation with the correct pitch ensures permanent vibration resistance. Applications range from private homes with cable junction boxes to industrial applications in distribution cabinets.
