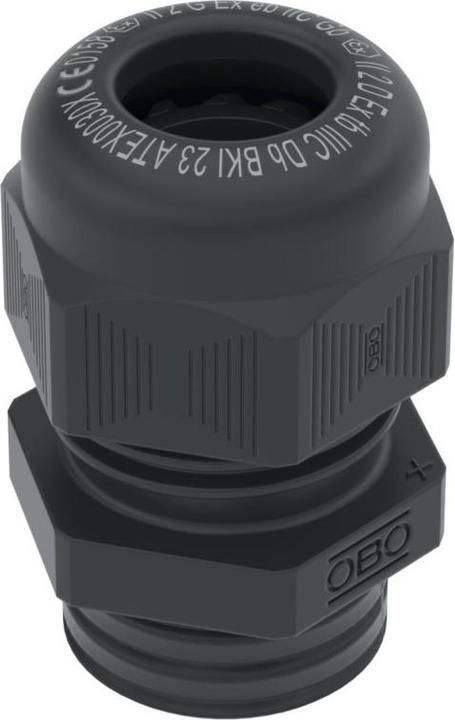

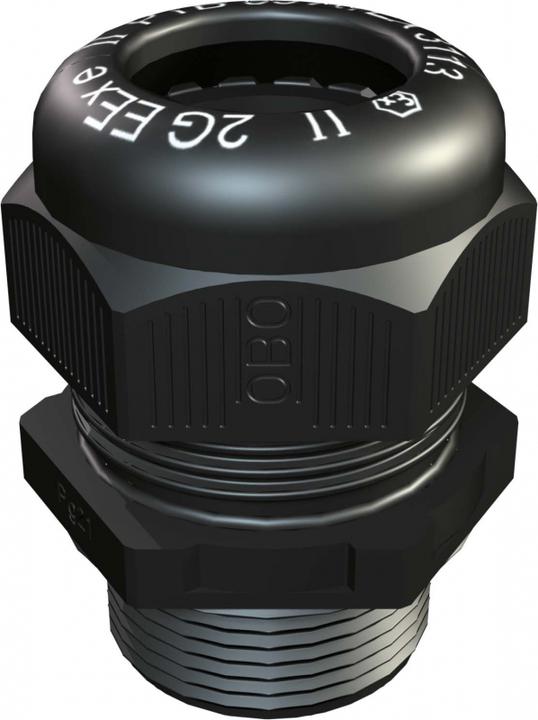

OBO Bettermann Screw connection

OBO Bettermann screw connection VTEC EX M20 SW

Manufacturer: OBO Bettermann
Designation: Screw connection
Type: VTEC EX M20 SW
Thread type: Metric
Nominal thread size metric/PG: 20
Thread pitch: 1.5 mm
Thread length: 9 mm
Width across flats: 24 mm
Hexagonal square dimension: 27 mm
Suitable for cable diameters: 7 to 12 mm
Material: Plastic
Material grade: Other
Surface protection: Untreated
Halogen-free: Yes
Glass fiber reinforced: No
Protection class (IP): IP68
Impact resistant: No
Color: Black
Bending protection: No
With locknut: No
Design: Straight
Multiple sealing insert: No
Flat cable gland: No
With strain relief: Yes
Type of seal: Sealing ring
Separable gland: No
Operating temperature: -20 to 65 °C
Explosion-tested version: Yes
For Ex-zone dust: 22

OBO Bettermann cable gland VTEC EX M20 SW is a cable gland with EC type examination certificate for equipment and protective systems intended for use in potentially explosive atmospheres. It complies with Directive 94/9/EC, with EC type examination certificate numbers PTB 99 ATEX 3112X and 3113X. The cable gland features a metric connection thread according to IEC 423. It is a robust cable gland in cap nut design with a large sealing range, strain relief, and anti-twist protection for high sealing requirements. The sealing ring is made of chloroprene/nitrile rubber with molded-on sealing ribs, eliminating the need for a connection thread sealing ring. It is VDE-tested with a protection class of IP 68 at 5 bar.
