OBO Bettermann Cable gland

OBO Bettermann cable gland V-TEC VM L25 LGR

Manufacturer: OBO Bettermann
Designation: Cable gland M25 long PA lgr
Type: V-TEC VM L25 LGR
Thread type: Metric
Nominal thread size metric/PG: 25
Thread pitch: 1.5 mm
Thread length: 15 mm

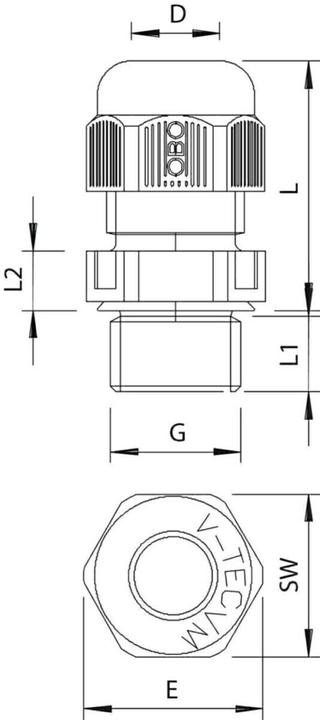

Width across flats: 29 mm
Hexagonal square dimension: 32 mm
Suitable for cable diameters: 9 to 17 mm
Material: Plastic
Material grade: Other
Surface protection: Untreated
Halogen-free: Yes
Glass fiber reinforced: No
Protection class (IP): IP68
Impact resistant: No
Color: Gray
RAL number: 7035
Bending protection: No
With locknut: No
Design: Straight
Multiple sealing insert: No
Flat cable gland: No
With strain relief: Yes
Type of seal: Sealing ring
Separable gland: No
Operating temperature: -20 to 65 °C
Explosion-tested version: No
For Ex zone gas: None
For Ex zone dust: None

The fastest and most convenient way to provide strain relief and sealing with cable glands on cable junction boxes and enclosures is the proven V-TEC VM cable glands from OBO. With the integrated sealing lip and special OBO lamella technology, protection class IP68 is achieved. Strain relief and tightness are tested in accordance with DIN EN 50262, and the connection threads are metric. Once screwed in, the installation lasts forever: the optimum thread adaptation with the correct pitch ensures permanent vibration resistance. Applications range from private residential cable junction boxes to industrial applications in distribution cabinets.
