Niedax NIE LUT 100.100.100 T-piece with cover 100x100mm outlet width 100mm strip

Niedax T-piece LUT 100.100.100
Manufacturer: Niedax
Description: T-piece
Type: LUT 100.100.100
Height: 60 mm
Width: 100 mm
Outgoing Height: 100 mm
Outgoing Width: 100 mm
Design: Lower part and upper part
Material: Steel
Material Quality: Other
Halogen-free: Yes
Antibacterial Treatment: No
Surface Protection: Band galvanized
Suitable for Function Maintenance: No
Mounting Type: Floor hole
With Protective Film: No
Protection Class (IP): IP20
Operating Temperature: -5..90 °C

Niedax T-piece LUT 100.100.100: additional details

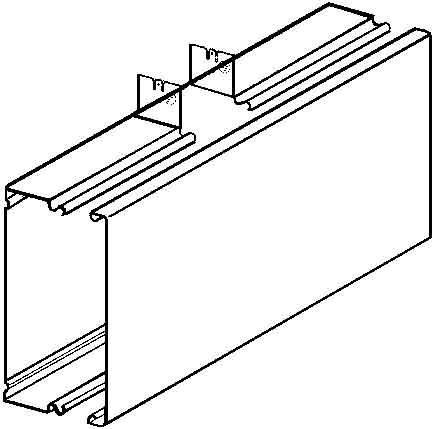

Cable protection channel T-piece 90°, with snap-on cover, channel lower part unpunched, connection lugs with grounding flag aligned with the channel, these must be bent at the pre-formed notches at a right angle for the outgoing connection, potential equalization occurs between the channels via the joint connector LST... and the potential equalization cable GSLH... (please order separately), with the covers automatically upon snapping on. VDE certified!
Use for: Cable protection channels LLK... / LUK...

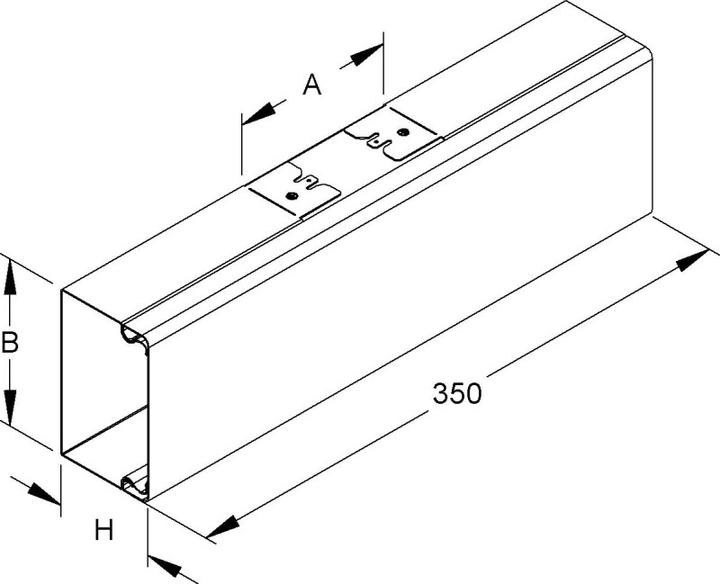

Dimensions (approx. dimensions) Main direction H x B: 100 x 100 mm
Outgoing H x B: 100 x 100 mm
The height of the outgoing connection corresponds to the height of the main direction!
Length L: 350 mm
Material: Steel, band galvanized according to DIN EN 10346
EAN: 4013339792351.
