Niedax NIE LUT 100.100.100 E3 T-piece with cover 100x100mm outlet width 100mm E

Niedax T-piece LUT 100.100.100 E3

Manufacturer: Niedax
Designation: T-piece
Type: LUT 100.100.100 E3
Height: 100 mm
Width: 100 mm
Outgoing Height: 100 mm
Outgoing Width: 100 mm
Design: Lower part and upper part
Material: Stainless steel
Material grade: Stainless steel 304 (1.4301)
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Other
Suitable for function maintenance: No
Mounting type: Floor hole
Color: Other
With protective film: No
Protection class (IP): IP20
Operating temperature: -5..90 °C

Niedax T-piece LUT 100.100.100 E3: further details

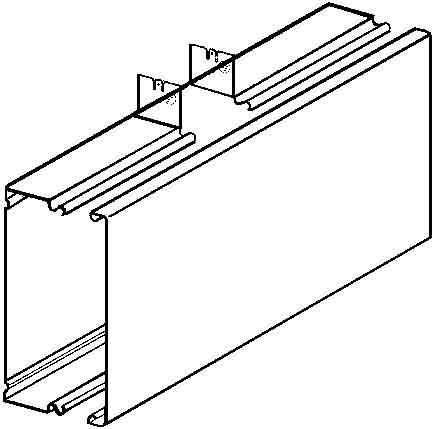

Cable protection channel T-piece 90°, with snap-on cover, channel lower part unpunched, connection tabs with grounding flag aligned with the channel, which must be bent once on site at the pre-formed notches at a right angle for the outgoing connection. The potential equalization occurs between the channels via the joint connector LST...E3 and the potential equalization cable GSLH... (please order separately), and automatically with the covers when snapping on.

Use for: Cable protection channels LLK...E3 / LUK...E3

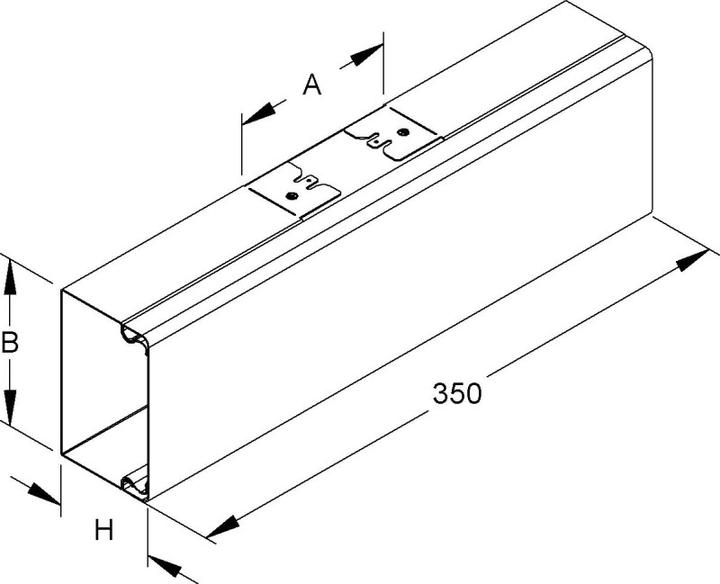

Dimensions (approx. measurements)
Main direction H x B: 100 x 100 mm
Outgoing H x B: 100 x 100 mm
The height of the outgoing connection corresponds to the height of the main direction!
Length L: 350 mm
Material: Stainless steel, Material No. 1.4301, AISI 304.
