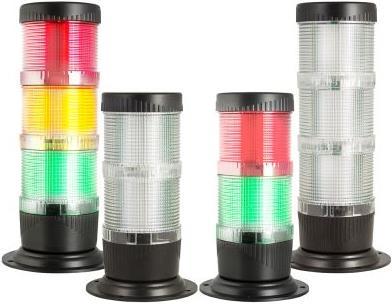

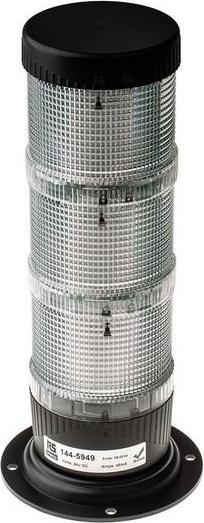

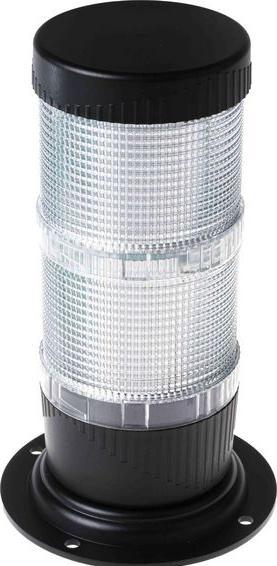

Moflash Tower Light 24Vdc 3-Stack Red/Amb/Grn

Supply voltage: 24 V DC
Light type: Flash, Continuous
Lens color: Yellow, Green, Red
Mounting type: Surface mount
Lamp type: LED
Current type: DC
Base diameter: 100 mm
Housing color: Black
Lamp included: Yes
Series: LED-TLM
Multifunction: Yes
Height: 56 mm (base)
Max temperature: +55 °C

Modular signal tower Moflash TLM. The signal lights of the LED-TLM series are ideal for status indication in light commercial and industrial signaling applications where a local signal is required. There are two selectable modes for alarm, flash, or continuous mode (static), which can be chosen using a toggle switch on the circuit board. The ECO LED-TLM series signal lights were primarily developed to provide a cost-effective alternative to traditional incandescent lamps, whether for new installations and machines or for upgrading existing systems. The design is modular and easy to install. Color modules are equipped with a quick-connect fitting that simply plugs into the connector in the lower module to establish a connection. The series also includes an acoustic module option that can be integrated anywhere in the modular stack.

Features and benefits:

• The signal light units have a dual function: flash mode or continuous mode (static)
• Sound output: 80–120 dB
• Designed for continuous operation
• Long-life LED
• Low power consumption
• Suitable for surface mounting
• 360° light emission around the vertical axis
• Dustproof and weather-resistant
• Lens made of UV-resistant polycarbonate
• Base made of UV-resistant ABS plastic
• 60 flash signals per minute
• Protection class IP54/65
• RoHS compliant
• CE marked.
