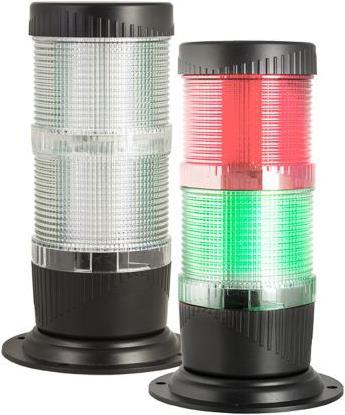

Moflash Tower Light 24Vdc 2-Stack Red/Green

Supply voltage: 24 V dc
Light type: Flash, Continuous
Lens color: Green, Red
Mounting type: Surface mount
Lamp type: LED
Current consumption: 45 mA
Base diameter: 100 mm
Housing color: Black
Lamp included: Yes
Series: LED-TLM
Multifunction: Yes
Height: 56 mm (base)
Max temperature: +55 °C

Modular signal tower Moflash TLM. The signal lights of the LED-TLM series are ideal for status indication in light commercial and industrial signaling applications where a local signal is required. There are two selectable modes for alarm, flash, or continuous mode (static), which can be selected using a slide switch on the circuit board. The ECO LED-TLM series signal lights have been primarily developed to provide a cost-effective alternative to traditional incandescent bulbs, both for new installations and machines as well as for upgrading existing systems. The design is modular and easy to assemble. Color modules are equipped with a quick-connect fitting that simply plugs into the connector port of the lower module to establish a connection. The series also includes an acoustic module option that can be integrated anywhere in the modular stack.

Features and benefits:

• The signal light units have a dual function: Flash mode or Continuous mode (static)
• Sound output: 80–120 dB
• Designed for continuous operation
• Long-life LED
• Low power consumption
• Suitable for surface mounting
• 360° light output around the vertical axis
• Dustproof and weather-resistant
• Lens made of UV-resistant polycarbonate
• Base made of UV-resistant ABS plastic
• 60 flash signals per minute
• Protection class IP54/65
• RoHS compliant
• CE marked.
