Kukko Disconnector 15

Kukko Separation Device 15 Opening A 25-155mm for Item No. 4157 490 003

Manufacturer: Kukko
Description: Kukko Separation Device 15 Opening A 25-155mm for Item No. 4157 490 003
Type: 15
Warranty Period: 24 months
Country of Origin: Germany
Nominal Size: 3
Opening A: 25 - 155 mm
Opening B: 155 mm
Compatible Pulling Device: Item No. 4157 490 003
Model: 15-3
Weight: 5.3 kg
Packaging Size: 1 piece

Application: For pulling ball bearings, roller bearings, inner rings, and other flush-mounted parts. The sharp edges allow for the removal of flush-mounted parts where 2- and 3-arm pullers are unsuitable. The clamping of the separation jaws is achieved by evenly loosening the nuts on the side bolts.

Operation: The pulling is done by tightening the spindle against the shaft end. For larger pulling devices, a hydraulic operation is also possible.

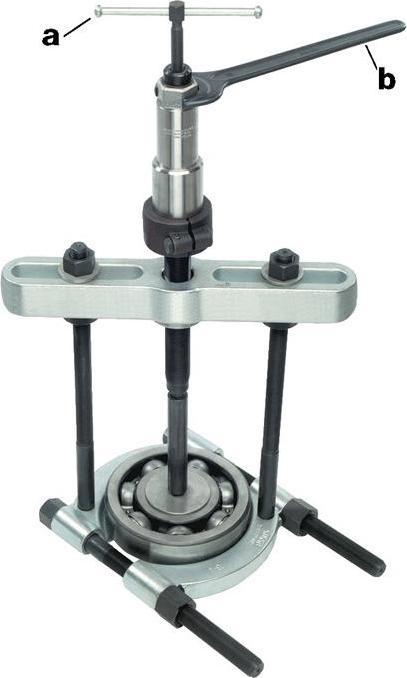

Note on hydraulic operation: (Hydraulics are not included in the delivery) Use the key to screw the hydraulic spindle into the thread of the traverse of the pulling device until the pressure piece presses firmly against the shaft. Then, by turning the upper spindle, activate the hydraulics.

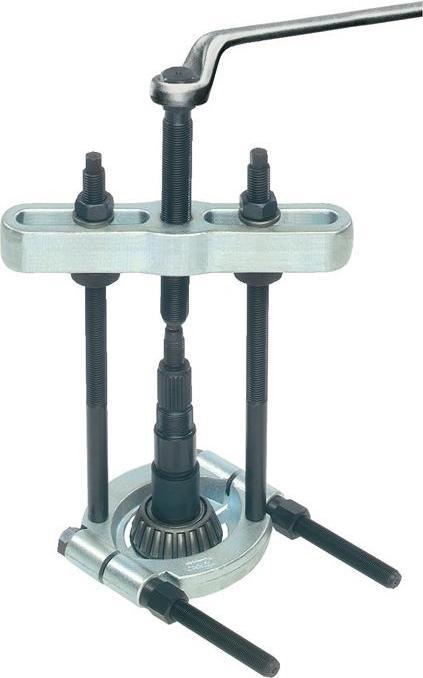

Caution: The images show the separation device in combination with the pulling devices Item No. 4157 490 000, 4157 490 001, 4157 490 002, 4157 490 003 (not included in the delivery). Please inquire separately for the hydraulic spindle.
EAN: 4021176007293.
