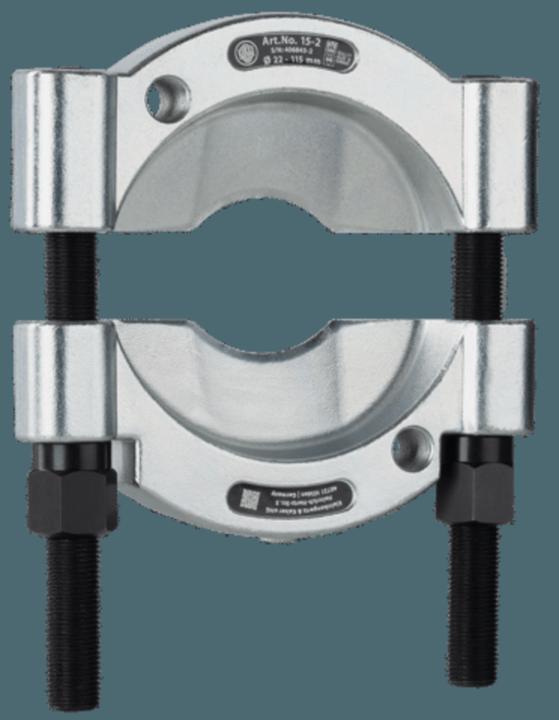

Kukko Disconnector 15

Kukko Separator Device 15 Opening A 22-115 mm for Item No. 4157 490 002

Manufacturer: Kukko
Description: Kukko Separator Device 15 Opening A 22-115 mm for Item No. 4157 490 002
Type: 15
Warranty Period: 24 months
Country of Origin: Germany
Nominal Size: 2
Opening A: 22 - 115 mm
Opening B: 115 mm
Compatible Pulling Device: Item No. 4157 490 002
Model: 15-2
Weight: 2.9 kg
Packaging Size: 1 piece

Application: For pulling ball bearings, roller bearings, inner rings, and other flush-mounted parts. The sharp edges allow for the removal of flush-mounted parts where 2- and 3-armed pullers are not applicable. The clamping of the separator jaws is done by evenly loosening the nuts on the side bolts.

Operation: The pulling is done by tightening the spindle against the shaft end. For larger pulling devices, a hydraulic operation is also possible.

Note on Hydraulic Operation: The hydraulic system is not included in the delivery. Use the key to screw the hydraulic spindle into the thread of the crossbeam of the pulling device until the pressure piece presses firmly against the shaft. Then, by turning the upper spindle, activate the hydraulic system.

Caution: The images show the separator device in combination with the pulling devices Item No. 4157 490 000, 4157 490 001, 4157 490 002, 4157 490 003 (not included in the delivery). Please inquire separately for the hydraulic spindle.
EAN: 4021176007118.
