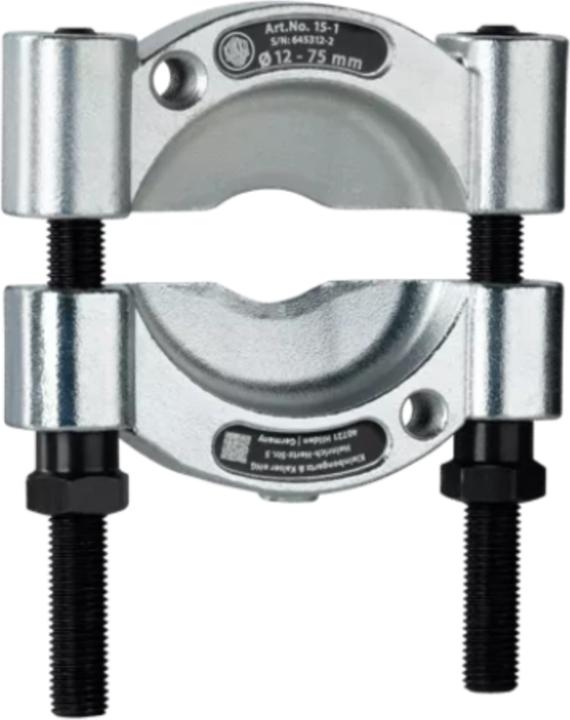

Kukko Disconnector 15

Kukko Separation Device 15 Opening A 12-75 mm, Item No. 4157490001. Manufacturer: Kukko. Type: 15. Warranty period: 24 months. Country of origin: Germany. Nominal size: 1. Opening A: 12 - 75 mm. Opening B: 75 mm. Compatible pulling device: Item No. 4157490001. Model: 15-1. Weight: 1.11 kg. Packaging size: 1 piece.

Application: For pulling ball bearings, roller bearings, inner rings, and other flush-mounted parts. The sharp edges allow for the removal of flush-mounted parts where 2- and 3-armed pullers are unsuitable. The separation jaws are tightened by evenly loosening the nuts on the side bolts.

Operation: The pulling action is achieved by tightening the spindle against the shaft end. For larger pulling devices, a hydraulic operation is also possible.

Note on hydraulic operation: The hydraulic system is not included in the delivery. Use the key to screw the hydraulic spindle into the thread of the traverse of the pulling device until the pressure piece presses firmly against the shaft. Then, by turning the upper spindle, activate the hydraulic system.

Caution: The images show the separation device in combination with the pulling devices Item No. 4157490000, 4157490001, 4157490002, 4157490003 (not included in the delivery). Please inquire about the hydraulic spindle separately. EAN: 4021176007033.
