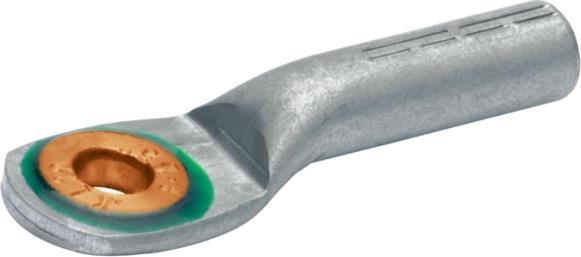

Klauke Al-Cu compression cable lug

Ratings
BrandMore from Klauke
Delivered between Thu, 30.4. and Fri, 15.5.
10 pieces in stock at supplier
Free shipping starting at 50.–

Suitable for cable cross-section3

Product details

Klauke Al-Cu-Press Cable Lugs 307R10

Manufacturer: Klauke
Designation: Al-Cu-Press Cable Lug 70RM/SM-95SE
Type: 307R10
Cross-section shape: round/sector-shaped
Narrow flange design: no
Nominal cross-section aluminum, RM/SM: 70 mm²
Nominal cross-section aluminum, SE: 95 mm²
Connection thread size (metric): 10
Material: Aluminum
Suitable for Al/St cables: yes
Longitudinal sealing: no
Identification number: 18
Number of mounting holes: 1
Complies with DIN: yes
Sleeve shape: long

Klauke Al-Cu-Press Cable Lug 307R10: additional details
Tube dimensions according to DIN 46329. For strain-relieved connections of aluminum conductors according to DIN EN 60228 and aluminum cables according to DIN EN 50182. With identification number for clear tool assignment. Filled with contact grease for optimal crimping properties. For screwing strain-relieved aluminum connections onto copper rails in damp environments. For round-pressed sector conductors. With a copper eye in the screw connection area. With crimp markings for correct crimping. Precise end processing for easy cable insertion. Bare, material E-Al. Copper according to EN 13600.

Key specifications

Cable connection type
Cable lugs
Clamps diameter
10 mm
Suitable for cable cross-section
70 mm²
Items per sales unit
1x

General information

Item number
21349138
Manufacturer
Klauke
Category
Cable joints
Manufacturer no.
307R10
Release date
29.6.2022
External links
Manufacturer's site (de)

Material

Material
Aluminium
Material group
Metal

Cable connection Properties

Cable connection type
Cable lugs
Clamps diameter
10 mm
Suitable for cable cross-section
70 mm²

Origin

Country of origin
Slovakia

Voluntary climate contribution

CO₂ emissions
0.25 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1x

30-day right of return
24 Months Warranty (Bring-in)
