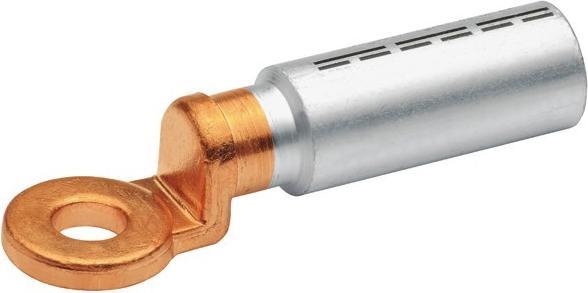

Klauke Al-Cu press cable lug

Ratings
BrandMore from Klauke
Delivered between Wed, 22.4. and Thu, 23.4.
6 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Klauke Al-Cu compression cable lug 367R/10

Manufacturer: Klauke
Designation: Al-Cu compression cable lug 70RM/SM-95SE
Type: 367R/10
Cross-section shape: round/sector
Narrow flange design: no
Nominal cross-section aluminium, RM/SM: 70 mm²
Nominal cross-section aluminium, SE: 95 mm²
Connection thread dimension (metric): 10
Material: aluminium
Suitable for Al/St ropes: yes
Longitudinal sealing: yes
Code number: 18
Number of fixing holes: 1
Conforms to DIN: no
Sleeve shape: long

Further details:
Pipe dimension according to DIN 46329. For strain-relieved connections of Al conductors according to DIN EN 60228 and Al ropes according to DIN EN 50182. For screwing Al connections onto Cu rails in damp rooms. With code number for clear tool allocation. Filled with contact grease for optimum pressing properties. Longitudinally tight design with oil stop and solid copper screw-on lug. For round pressed sector conductors. With crimping marks for correct crimping. Precise end machining for easy cable entry. Bright, material E-Al. Cu according to EN 13600.

Key specifications

Colour
Silver
Cable connection type
Cable lugs
Clamps diameter
10 mm
Suitable for cable cross-section
70 mm²

General information

Item number
36748148
Manufacturer
Klauke
Category
Cable joints
Manufacturer no.
367R10
Release date
28.6.2023
External links
Manufacturer's site (de)

Colour

Exact colour description
blank
Colour
Silver

Material

Material
Aluminium
Material group
Metal

Cable connection Properties

Cable connection type
Cable lugs
Clamps diameter
10 mm
Suitable for cable cross-section
70 mm²

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
0.25 kg
Climate contribution
CHF 0.11
