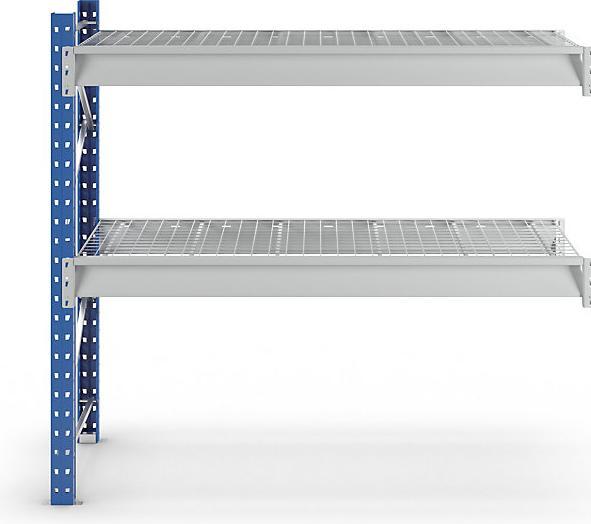

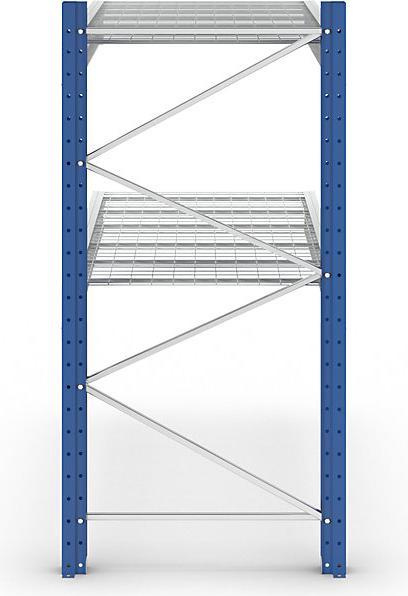

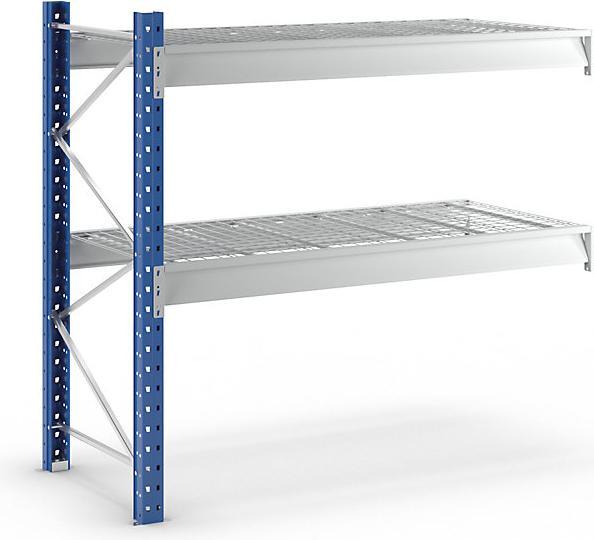

kaiserkraft Heavy Duty Large Shelf

Heavy-duty shelving unit with large shelves and wire mesh support modules, dimensions 1996 x 2330 x 1000 mm, extension shelf. Designed for the manual storage of bulky and heavy goods. The support beams can be assembled and adjusted without screws. Manufactured in accordance with the guidelines and regulations of the European FEM 10.2.06 and Eurocode III.

Width of the base shelf - without foot plates: shelf width + 100 mm; with foot plates: shelf width + 160 mm. Width of the extension shelves - without foot plates: shelf width + 50 mm; with foot plates: shelf width + 80 mm. Shelf depth including foot plates: shelf depth + 10 mm. The support frame consists of 2 steel posts, thickness 1.5 mm, blue RAL 5010 plastic-coated, with a "bottle profile" of 50 x 50 mm. The cross beams and diagonals of the support frame are made of galvanized C-profile, 25 x 15 mm, and are bolted to the posts. Galvanized foot plates for floor anchoring, 3 mm high. Floor adjustment is done in increments of 50 mm.

The shelf levels feature support beams with Z-profile, light gray RAL 7035 plastic-coated. Three suspension hooks with safety pins are included for mounting the support beams. The wire mesh support modules are also light gray RAL 7035 plastic-coated. The load capacities apply with uniform load distribution. Additional levels are possible, provided the specified maximum field load is adhered to.
