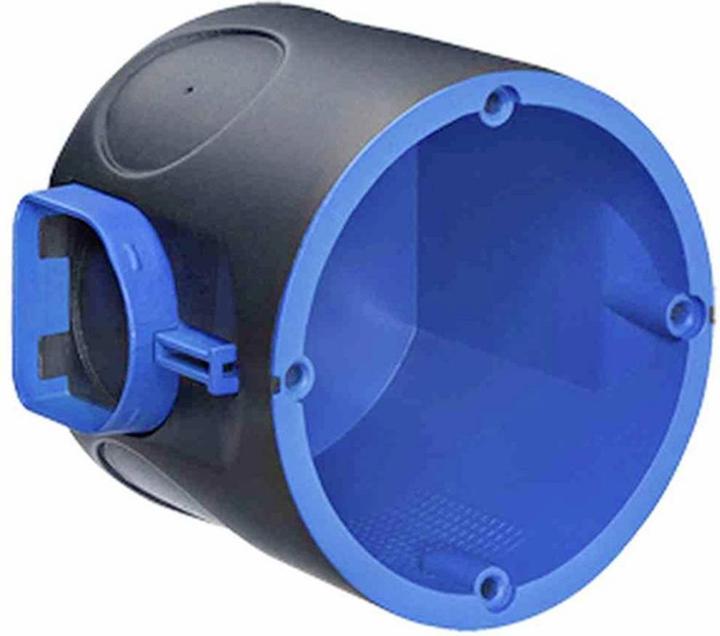

Kaiser Soundproofing box

Kaiser Soundproofing Box 1569-01

Manufacturer: Kaiser
Description: Soundproofing Box Flush-mounted
Type: 1569-01
Mounting Type: Flush-mounted
Shape: Round
Design: Device Connection Box
Version: Single
With Rotatable Ring: No
Coupleable: Yes
Filling: None
Diameter: 60 mm
Depth: 60 mm
Internal Depth: 60 mm
Suitable for Wall/Panel Thickness: 110 mm
For Number of Device Inserts: 1
Device Attachment: Screws
With Screws: No
Housing Entry through Breakout Opening: No
Housing Entry through Sealing Membrane: No
Housing Entry through Pipe Socket: No
Housing Entry through Step Membrane: No
For Pipe Diameter: 20/25 mm
Suitable for Cable Diameter: 4 to 15 mm
Pipe Locking: No
Pipe Locking Optional: No
Rear Entry: No
Number of Entries: 6
Material: Plastic
Halogen-free: Yes
Surface Protection: Untreated
Color: Blue
Protection Class (IP): IP2X
Cover Version: None
Transparent Cover: No
Cover Attachment: Screwed
Seal-able: No
Function Preservation: None
With Shielding: No
Air-tight: Yes
Max. Conductor Cross-section: 2.5 mm²
Clamp Position Fixed: No
Light Hook Attachment: No
Socket: Tunnel Socket
Special Application: Soundproofing
With Partition Wall: No

Kaiser Soundproofing Box 1569-01: Additional Details
Device connection box for soundproofing flush-mounted (1569-01). Soundproofing box for use in soundproof walls in solid construction with increased soundproofing requirements. The solid box body with additional soundproofing casing absorbs and reflects sound, ensuring that disturbances in adjacent rooms are excluded and the soundproofing remains intact as if no installation boxes were present.
Depth: 60 mm
EAN: 4013456544505.
