Kaiser Soundproofing box

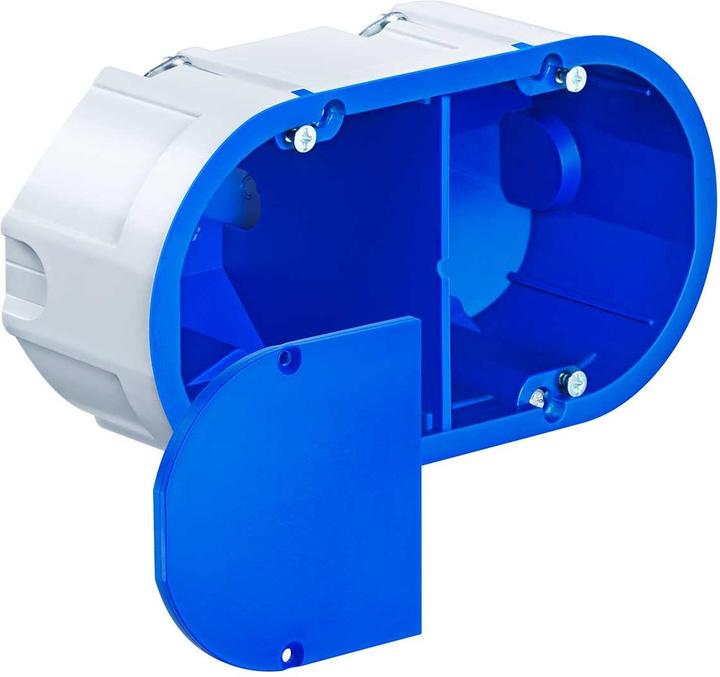

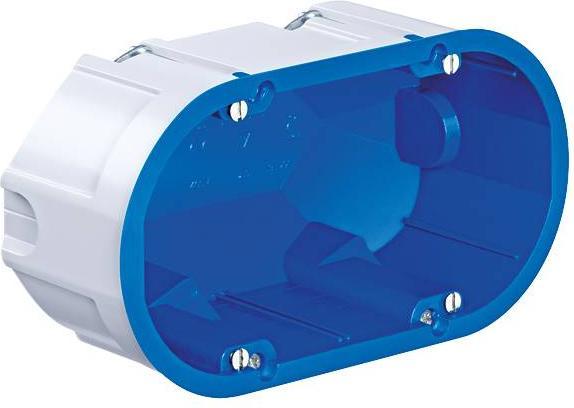

Kaiser Soundproof Box 9069-94

Manufacturer: Kaiser
Description: Soundproof Box
Type: 9069-94
Mounting Type: Hollow Wall
Shape: Round
Design: Device Connection Box
Version: Double
With Rotatable Ring: No
Couplable: Yes
Filling: None

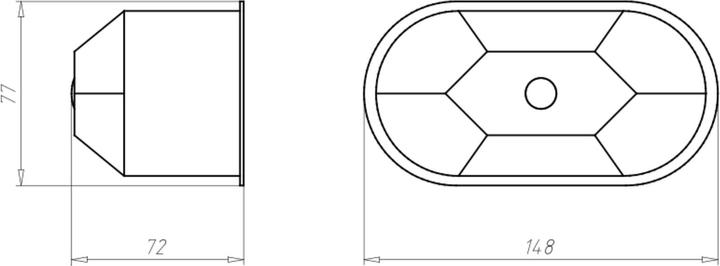

Diameter: 74 mm
Length: 146 mm
Width: 74 mm
Depth: 70 mm
Internal Depth: 70 mm
Suitable for Wall/Panel Thickness: 7-40 mm
For Number of Device Inserts: 2
Device Mounting: Screws
With Screws: Yes
Housing Pass-Through via Breakout Opening: No
Housing Pass-Through via Sealing Membrane: No
Housing Pass-Through via Pipe Socket: No
Housing Pass-Through via Step Membrane: No
For Pipe Diameter: 20/25 mm
Suitable for Cable Diameter: 4-11.5 mm
Pipe Locking: No
Pipe Locking Optional: No
Rear Entry: No
Number of Entries: 6
Material: Plastic
Halogen-Free: Yes
Surface Protection: Untreated
Color: Blue
Protection Class (IP): IP3X
Cover Design: None
Transparent Cover: No
Cover Attachment: Screwed
Sealability: No
Function Maintenance: None
With Shielding: No
Air Tight: Yes
Max. Conductor Cross-Section: 2.5 mm²
Terminal Position Fixed: No
Light Hook Attachment: No
Socket: Other
Special Application: Soundproofing
With Partition Wall: Yes

Kaiser Soundproof Box 9069-94: Additional Details
Soundproof Electronic Box (9069-94) for use in walls with increased soundproofing requirements. The soundproof electronic box maintains the soundproofing function of the wall and creates installation space for electronic switching devices, data sockets, cables, and terminals. The electronic box allows for the installation of cables and installation pipes up to M25.
Application Area: For Built-in Devices | Application Area: For Electronic Components (KNX Actuators, Relays, etc.) | Installation Type: Soundproofing | Depth: 70 mm | Milling Hole Ø: 2 x 74 mm.
