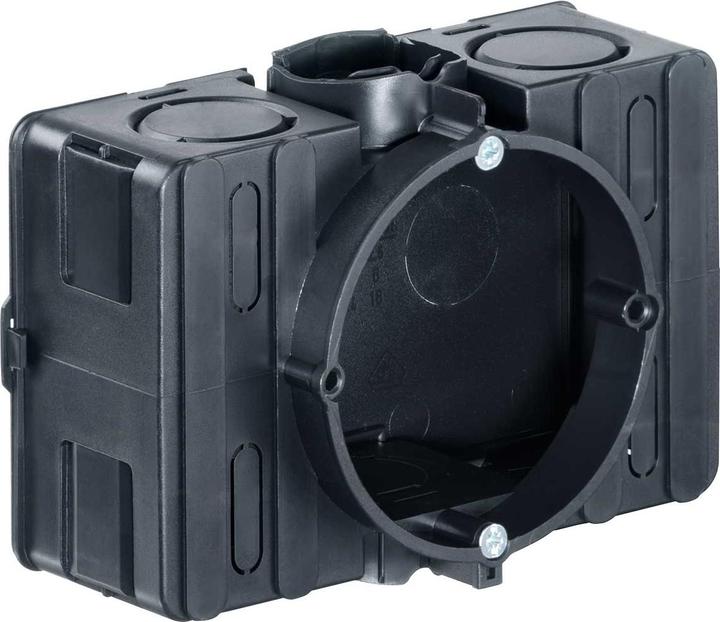

Kaiser Junction switch box

Save CHF4.60
Ratings
BrandMore from Kaiser
Delivered between Wed, 15.4. and Tue, 21.4.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Width3

Product details

Kaiser Junction Box 1069-02

Manufacturer: Kaiser
Designation: Junction box with side clamping space
Type: 1069-02
Mounting type: Flush-mounted
Shape: Rectangular
Design: Device connection box
Version: Single
With rotating ring: No
Couplable: Yes
Filling: Without
Diameter: 60 mm
Length: 110 mm
Width: 71 mm
Depth: 50.5 mm
Internal depth: 49 mm
For number of device inserts: 1
Device fastening: Screws
With screws: Yes
Housing passage through knock-out opening: Yes
Housing passage through sealing membrane: No
Housing passage through pipe connector: Yes
Housing passage through stepped membrane: No
For pipe diameter: 20/25 mm
Suitable for cable diameter: 11.5 mm
Pipe locking: Yes
Pipe locking optional: No
Rear entry: Yes
Number of entries: 12
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Black
Protection class (IP): IP2X
Cover version: Without
Transparent cover: No
Cover fastening: Screwed
Seal-able: No
Function maintenance: Without
With shielding: No
Air-tight: No
Max. conductor cross-section: 2.5 mm²
Clamp position fixed: No
Light hook fastening: No
Connector: Tunnel connector
Special application: None
With partition wall: No

Kaiser Junction Box 1069-02: Additional details
Device connection box with side spaces for connections (1069-02). UP-PLUS, the new generation of flush-mounted installation with the innovative combination connector for quick and twist-proof combinations. With variable pipe entry for M20/M25 pipes and large installation space. Installation type: Basic installation | Application area: For built-in devices | Device screws: 2 | Length: 110 mm | Width: 71 mm | Depth: 49 mm.

Key specifications

Junction box type
Distribution box
Protection type (IP code)
IPX2
Height
20 mm
Width
71 mm
Length
110 mm

General information

Item number
20020924
Manufacturer
Kaiser
Category
Junction box
Manufacturer no.
1069-02
Release date
16.3.2022
Sales rank in Category Junction box
125 of 2567
External links
Manufacturer's site (de)

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Plastic
Material
Plastic

Junction Box Features

Junction box type
Distribution box
mounting style
Flush-mounted
Area of use
Inside

Safety

Protection type (IP code)
IPX2

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.87 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
10 pcs.

Product dimensions

Height
20 mm
Width
71 mm
Length
110 mm
Diameter
60 mm
