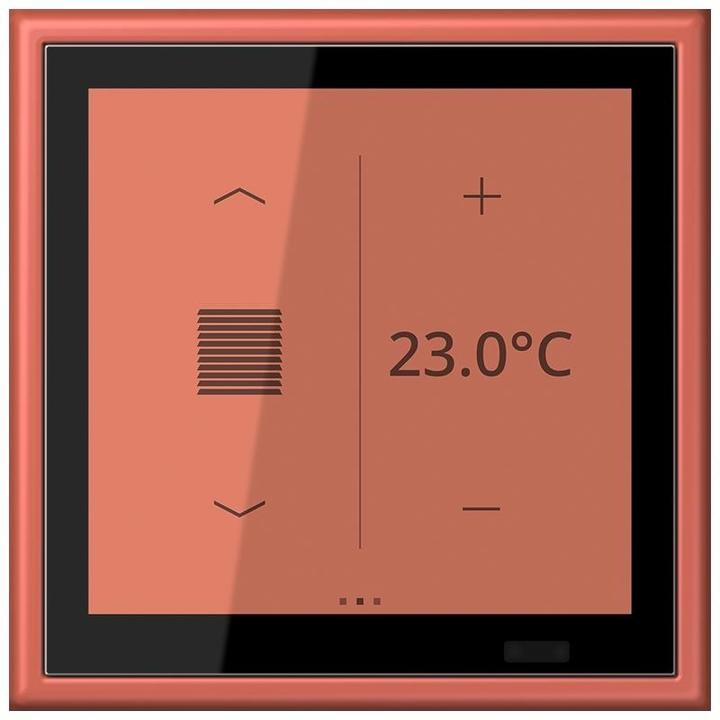

JUNG KNX room controller

Jung KNX room controller LC 459 D1 S236

Manufacturer: Jung
Designation: KNX room controller terre sienne brique
Type: LC 459 D1 S236
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Mounting type: Flush-mounted
With display: No
Status LED: Yes
Manual setpoint adjustment: Yes
Presence button: No
With integrated DCF77 receiver: No
With timer: No
With theft/dismantling protection: No
Central function unit for transmitters/actuators: No
Material: Plastic
Transparent: No
With bus coupling: Yes

Jung KNX room controller LC 459 D1 S236: Further details with integrated 1-gang frame LS 990. Only to be installed as a single device!

Intended use: Operating loads and visualizing system statuses and information, e.g., switching and dimming lights, controlling blinds, temperature, and consumption values, etc. Measuring and controlling the room temperature. Installation in appliance box with dimensions according to DIN 49073.

Product features:

• High-resolution IPS colour display
• Capacitive touchscreen
• Functions of the favourites pages can be set (without ETS)
• Max. 32 operating functions: Switching, dimming, blind control, value transmitter, scene recall, etc.
• Integrated room temperature sensor
• Room temperature control with setpoint specification
• Alarm function (acoustic and/or visual)
• Max. 8 timer functions can be activated and set (depending on time, astro, or random)
• Integrated proximity and brightness sensor
• Integrated bus coupling unit
• Connection of installation push-buttons or reed contacts possible
• Commissioning and support of KNX Data Secure with ETS from version 5.7.4
• Display of room and setpoint temperature
• Remote sensor can be connected
• Display of outdoor temperature with external sensor, e.g., weather station
• In conjunction with JUNG Smart Visu Server: Control of music playback and volume control.
• EAN: 4011377210394.
