Intercable Cordless cutter

Intercable Tools accumulator cutter hydraulic AS50F

Manufacturer: Intercable Tools
Designation: Accumulator cutter hydraulic max. 50mm w. pocket
Type: AS50F
Design/operation: Battery-hydraulic
Suitable for max. cable diameter: 50 mm
Cable diameter: 50 mm
Suitable for stranded conductors: Yes
Suitable for fine stranded conductors: Yes
Suitable for solid conductors: Yes
Suitable for steel wire braiding: No
Total length: 445 mm
Cutting head replaceable: No
Cutting jaws replaceable: Yes
With stripping function: No
Insulated: No
Protective insulation 1000 V: No
Handle design: 2-components
With impact protection: No
VDE-tested: No

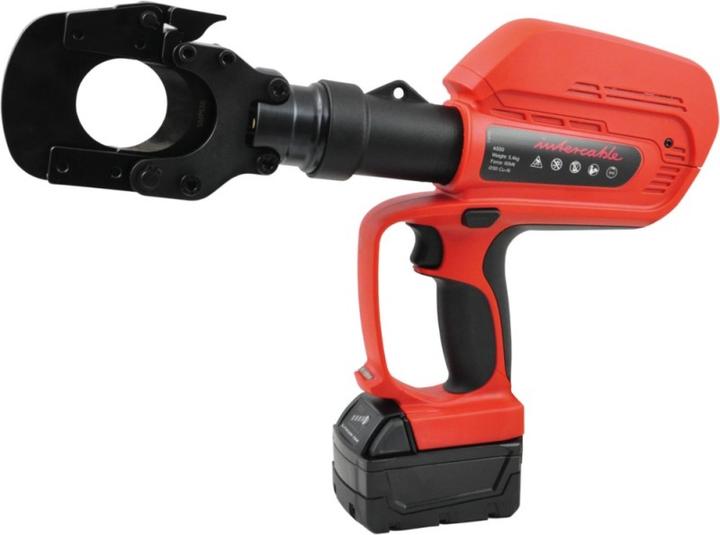

Intercable Tools cordless cutter hydraulic AS50F is suitable for cutting fine and multi-strand aluminum cables and copper cables without steel armoring up to a maximum diameter of 50 mm. It features a light, compact, and robust design with a foldable, 340° rotatable cutting head. The cutting edges are made of hardened steel, making them very wear-resistant. The housing is constructed from glass-fiber reinforced, impact-resistant plastic.

Double-piston technology enables an ergonomic, well-balanced 2-component handle for fatigue-free one-hand operation. The 2-step speed is advantageous when positioning the tool on the cutting material. The tool can be opened in any position using a left-right acting push button. An LED illuminates the working area.

Charging time is 50 minutes. The cutting range diameter is 50 mm, with a cutting force of 60 kN and operating pressure of 700 bar (70 MPa). Set equipment includes a hydraulic cordless cutter, LI-Ion battery 18V/3Ah, shoulder strap, charger for LI-Ion batteries 18V/230V, and a carrying bag.
