Product details

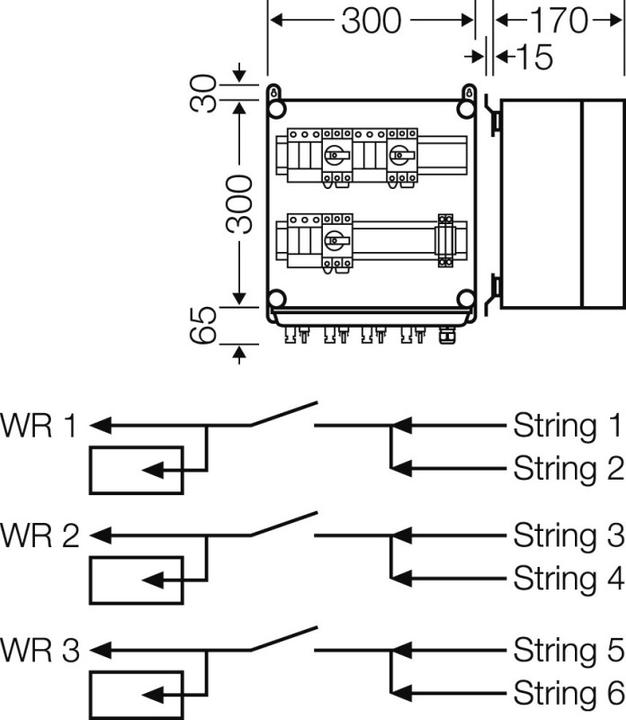

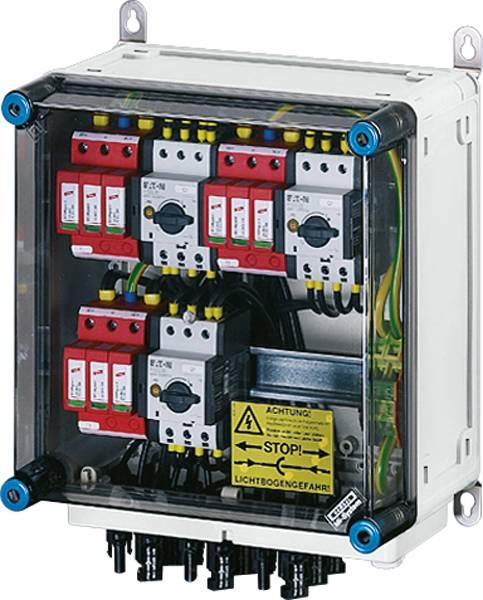

The PV-GAK from Hensel is a high-quality generator connection box specifically designed for photovoltaic systems up to 1000 V d.c. It meets the requirements of IEC 61439 and comes fully assembled and pre-wired for easy connection. The housing is made of protective insulated thermoplastics and offers reliable protection against dust and water ingress with an IP 65 rating. The connection box is suitable for protected outdoor installation and is characterized by its UV resistance. Wall mounting is facilitated by robust external brackets made of stainless steel. The PV-GAK is equipped with three DC surge protectors and three DC generator disconnect switches, ensuring safe and efficient use of the PV system. The plug connections are compatible with MC4, allowing for easy integration into existing systems.
- IP 65 rating for reliable outdoor use
- Fully assembled and pre-wired for connection
- Equipped with 3 DC surge protectors and 3 DC generator disconnect switches
- Wall mounting via external stainless steel brackets
- UV resistant and protective insulated from high-quality thermoplastics.
Protection type (IP code) | IP65 |
Height | 170 mm |
Width | 300 mm |
Length | 365 mm |
Item number | 22504362 |
Manufacturer | Hensel |
Category | Junction box |
Manufacturer no. | 4012591114697 |
Release date | 28.9.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
mounting style | Adhesive, Duvet |
Area of use | Outside |
Protection type (IP code) | IP65 |
Country of origin | Germany |
CO₂ emissions | 0.87 kg |
Climate contribution | CHF 0.11 |
Items per sales unit | 1 pcs. |
Height | 170 mm |
Width | 300 mm |
Length | 365 mm |
