Product details

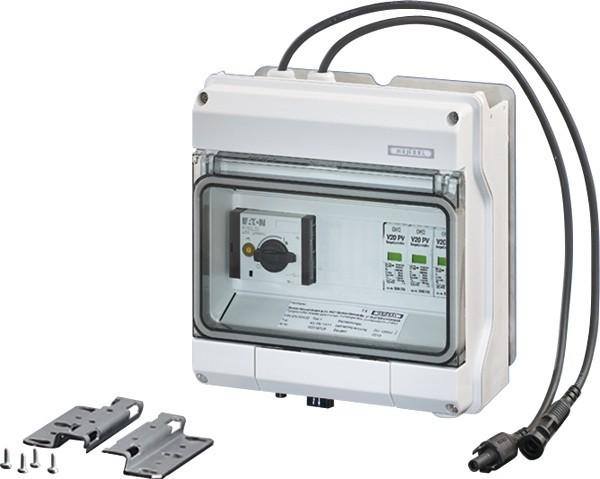

The PV-GAK from Hensel is a highly advanced generator connection box specifically designed for photovoltaic systems. It is suitable for use in systems up to 1000 V d.c. according to IEC 61439-1 and offers complete assembly as well as ready-to-connect wiring. The housing is made of high-quality, protection-insulated thermoplastic and meets the IP 65 protection class, making it ideal for unprotected outdoor use. The box is UV-resistant and equipped with a stainless steel mounting plate that allows for flexible wall or pole mounting. The PV-GAK is equipped with a Type 2 DC surge arrester and a DC generator disconnector, providing additional safety and functionality. The plug connections are compatible with MC4 connectors, and the hinged lid allows for easy manual operation. A lock for the lid and a sealing kit are included in the accessories to enhance security.
- Fully assembled and ready-to-connect wiring
- IP 65 protection class for outdoor use
- UV-resistant and protection-insulated
- Equipped with Type 2 DC surge arrester
- Compatible with MC4 plug connections.

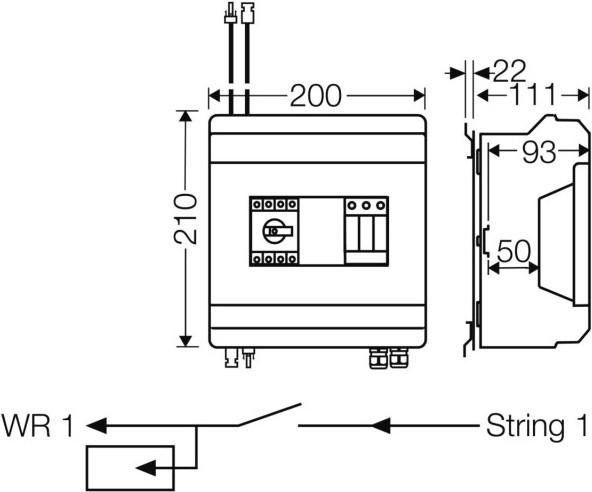

Protection type (IP code) | IP65 |
Height | 111 mm |
Width | 200 mm |
Length | 210 mm |
Item number | 21347264 |
Manufacturer | Hensel |
Category | Junction box |
Manufacturer no. | 4012591116929 |
Release date | 29.6.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
mounting style | Adhesive, Duvet |
Area of use | Outside |
Protection type (IP code) | IP65 |
Country of origin | Germany |
CO₂ emissions | 0.87 kg |
Climate contribution | CHF 0.11 |
Items per sales unit | 1 pcs. |
Height | 111 mm |
Width | 200 mm |
Length | 210 mm |
