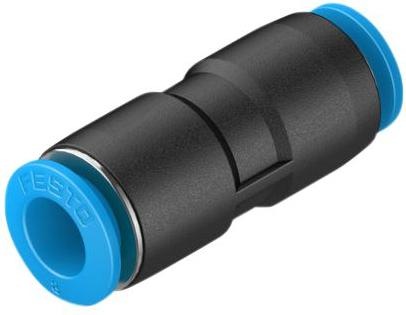

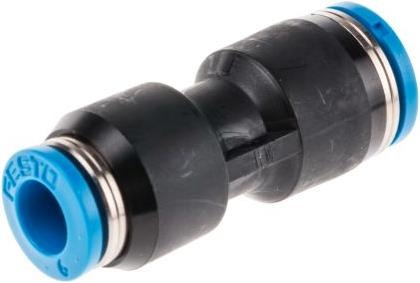

Festo Push-in Connector 8mm to 6mm

Manufacturer Series: QS
Pipe Connection A: Push-in installation 8 mm
Pipe Connection B: Push-in installation 6 mm
Housing Material: PBT
Max Operating Pressure: 14 bar
Min Operating Temperature: -10 °C
Pipe Connection B - Type: Push
Pipe Connection A - Pipe Size: 8 mm
Pipe Connection A - Type: Push
Pipe Connection B - Pipe Size: 6 mm
Max Operating Temperature: +80 °C
Connection Type: Pipe-to-Pipe

Straight QS connectors for push-in installation. A series of push-in pipe-to-pipe connectors designed for use in pneumatic applications. The connectors have an operating temperature range of -10 to +80 °C and a maximum nominal pressure of 14 bar. The housing is made of robust PBT with secure nitrile rubber hose seals.

Features and Benefits:

• Convenient and easy-to-install push-in system
• Made from highly durable materials
• Max Operating Pressure: 14 bar
• Operating temperature range from -10 to +80 °C
• The series offers connectors in various sizes for your connection needs
• Connectors are available with or without a sleeve with a push connection.
