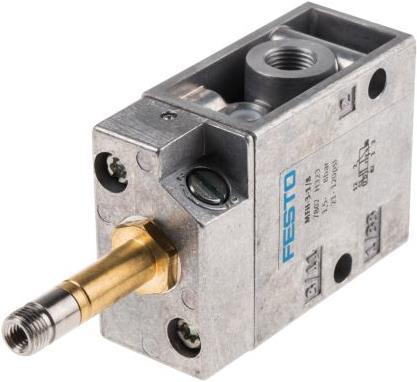

Festo G1/8 3/2 Solenoid Valve, Normally Closed

Manufacturer Series: MFH
Mounting Type: Through-mounting
Function: 3/2
Connection Thread: G1/8
Actuation Type: Magnet/Spring
Solenoid Connection: No
Housing Material: Aluminum
Maximum Flow Rate: 500 l/min
Solenoid Voltage: 48 V dc, 240 V ac
Solenoid Power Consumption: 4.5 W
Minimum Operating Pressure: 0 bar
Minimum Operating Temperature: -5 °C
Maximum Operating Temperature: +40 °C
Thread Size: 1/8 inch

F-solenoids must be ordered separately. Solenoid valves of the MFH series. The MFH series of individual solenoid valves is part of the Tiger Classic series and is ideal for use in pneumatic applications. These highly durable valves are available with 5/2-way or 3/2-way functions in a range of pipe sizes with G-thread, depending on the required connection. They can be mounted on PAL distribution strips or on PRS distribution blocks.

Features and Benefits:

• Maximum Operating Pressure: 8 bar
• 3/2 or 5/2-way valves
• Internal, pilot-controlled compressed air supply
• Operating temperature range from -5 to 40 °C
• Mechanical spring return
• Protection class IP65
• Electric actuation
• Robust and reliable
• Aluminum housing
• Very durable valve cone seat design
• Optimized response times
• Easily replaceable solenoids.
