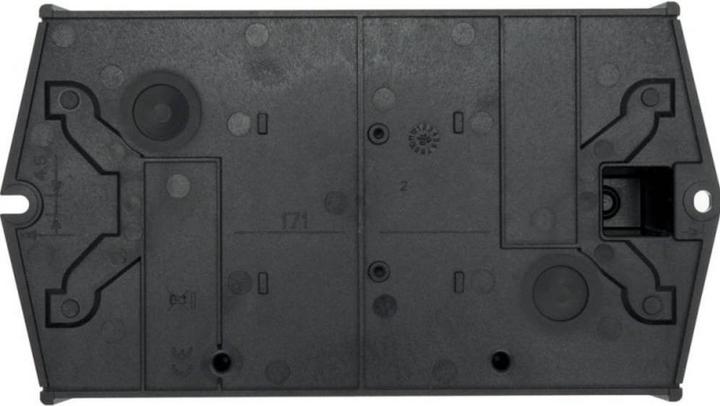

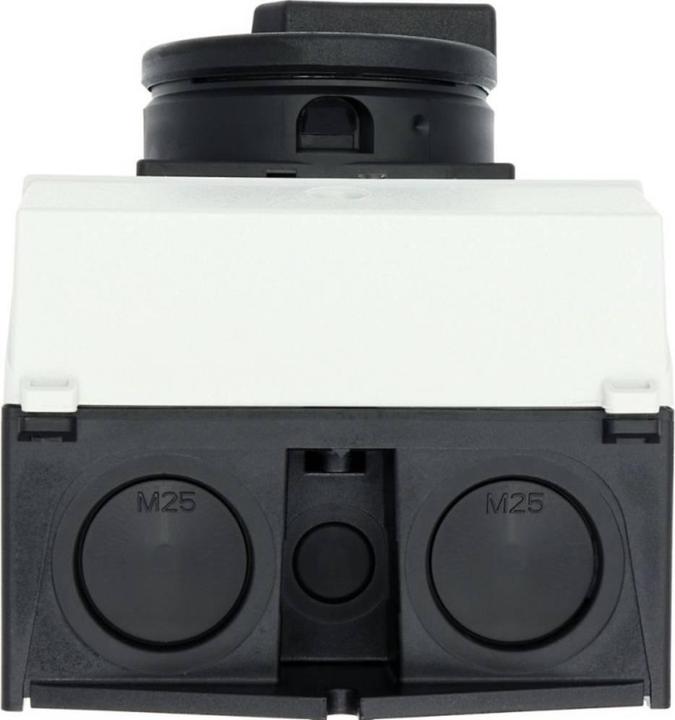

Eaton Isolator 25A 3 Pole with black handle

Number of poles: 3
Max current: 25 A
Mounting type: Enclosed
Contact configuration: 3 normally open
Power: 11 kW
Protection class: IP65
Padlock option: Yes
Operating voltage: 690 V ac
Length: 160 mm
Width: 100 mm
Depth: 80 mm
Minimum operating temperature: -25 °C

SMD isolating switch with enclosure. A series of enclosed isolating switches from Eaton Moeller. In these switches, the contacts are directly actuated during manual operation, and when the power supply is turned off, the contacts automatically open. These isolating switches can be used as network switches, maintenance switches, and manual bypass switches. Thermoplastic enclosure, surface-mounted, black rotary handle and locking ring, lockable in the 0 (off) position, protection against ingress of liquids and solids according to IP65.
