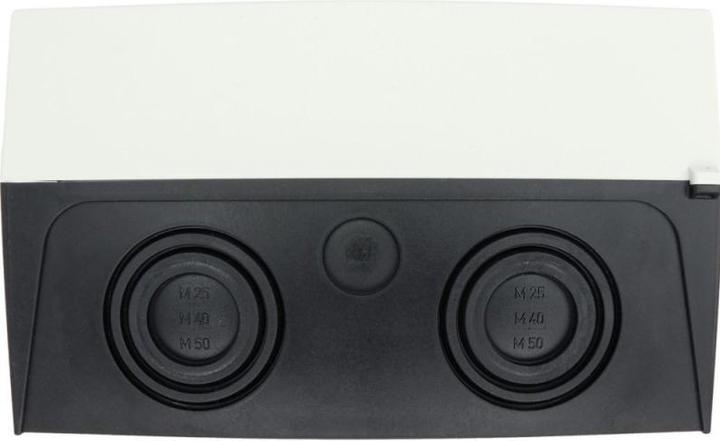

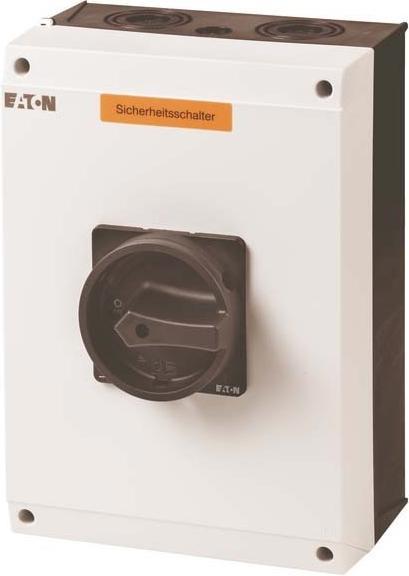

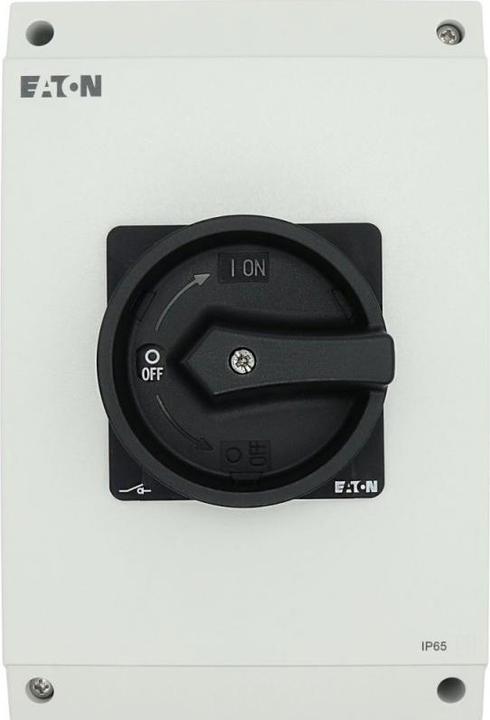

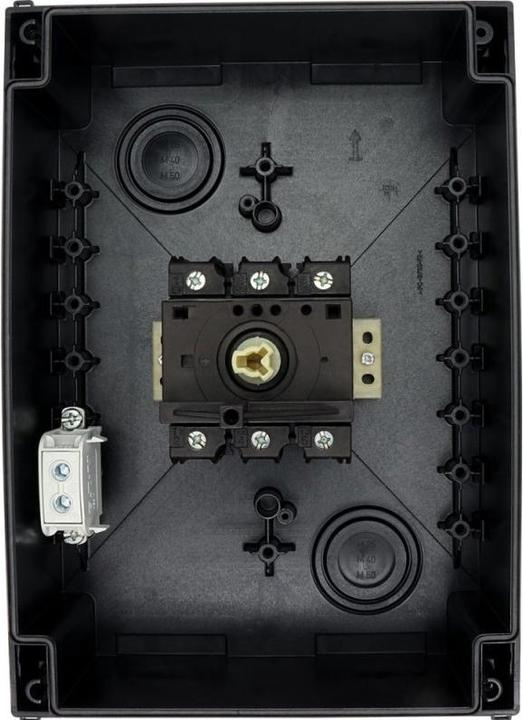

Eaton Isolator 100A 3 Pole with black handle

Ratings
BrandMore from Eaton
Delivered between Wed, 15.7. and Wed, 29.7.
free shipping

Performance2

Product details

Number of poles: 3
Max current: 100 A
Mounting type: Enclosed
Contact configuration: 3 normally open
Power: 65 kW
Protection class: IP65
Padlock option: Yes
Operating voltage: 690 V ac
Length: 280 mm
Width: 200 mm
Depth: 125 mm
Min operating temperature: -25 °C

SMD isolator switch with housing. A series of enclosed isolator switches from Eaton Moeller. In these switches, the contacts are directly actuated during manual switching, and when the power supply is turned off, the contacts open automatically. These isolator switches can be used as network switches, maintenance switches, and manual bypass switches. Thermoplastic housing, surface-mounted, black rotary handle and locking ring, lockable in the 0 (off) position, protection against ingress of liquids and dust according to IP65.

Key specifications

Nominal current
100 A
Nominal voltage
690 V
Protection type (IP code)
IP65

General information

Item number
9734038
Manufacturer
Eaton
Category
Mobile power distributors
Manufacturer No.
P3-100/I5/SVB-SW
Release date
24.9.2018

Colour

Colour
Black
Exact colour description
Black

Mobile power distributor features

Nominal current
100 A
Nominal voltage
690 V
Area of use
Inside
mounting type
Closed
Number of poles
3x
Contact Configuration
3 normally open contacts
Actuator Type
Door coupling rotary drive
Power
65000 W
Input voltage
690 V
Protection type (IP code)
IP65

Origin

Country of origin
United Kingdom

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
15.72 kg
Climate contribution
CHF 0.37

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
3-pole, Auxiliary switch contact or neutral conductor can be retrofitted., Design: Structure, Lockability: lockable in 0-position, Protection class: IP65
