Dehn Compact

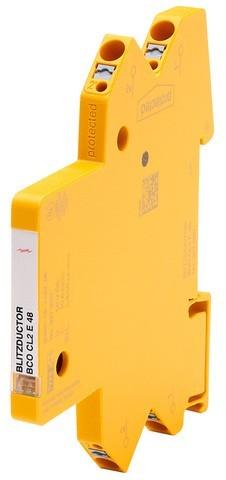

Dehn BCO CL2 E 48 compact surge arrester

Manufacturer: Dehn
Designation: Compact surge arrester
Type: BCO CL2 E 48
Rated voltage DC: 48 V
Highest continuous voltage AC: 41 V
Highest continuous voltage DC: 58 V
Rated leakage surge current (8/20): 0.8 kA
Lightning surge current (10/350 µs): 0.18 kA
Rated load current: 10 A
Protection level core/core: 180 V
Protection level core/earth: 90 V
Cut-off frequency: 2.5 MHz
Mounting type: DIN rail TH35
Connection 1: Push-in terminal
Arrester monitoring: Yes
Signalling on device: Optical
Number of conductors (without earth): 2
Earthing via: DIN rail
Width: 6 mm
Protection class (IP): IP20

Dehn compact BCO CL2 E 48 surge arrester is a space-saving, compact surge arrester with a 6 mm width and push-in connection technology with status indication. It features fine-limiting, single-stage surge protection with powerful diodes to protect 2 single conductors with common reference potential and unbalanced interfaces.
