Dehn Compact

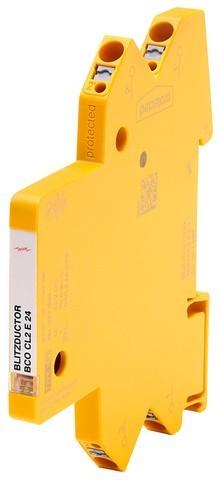

DEHN Compact surge arrester BCO CL2 E 24 Manufacturer :DEHN Designation :Compact surge arrester Type :BCO CL2 E 24 Rated voltage DC :24 V Maximum continuous voltage AC :23 V Maximum continuous voltage DC :33 V Rated discharge impulse current (8/20) :1.2 kA Lightning impulse current (10/350 µs) :0.2 kA Rated load current :10 A Protection level wire/wire :100 V Protection level wire/earth :55 V Cut-off frequency :1.5 MHz Mounting type :top-hat rail TH35 Connection 1 :push-in terminal Arrester monitoring :yes Signalling on unit :optical Number of conductors (without earth) :2 Earthing via :top-hat rail Overall width :6 mm Protection class (IP) :IP20 DEHN Compact surge arrester BCO CL2 E 24: further details Space-saving, compact surge arrester with 6 mm width and push-in connection system with status indication. Fine-limiting, single-stage surge protection with powerful diodes for the protection of 2 single wires with common reference potential as well as asymmetrical interfaces. , EAN: 4013364485747.
