Dallmer shower channel CeraLine W 1900mm, 524157, DN 50 overall height 110mm

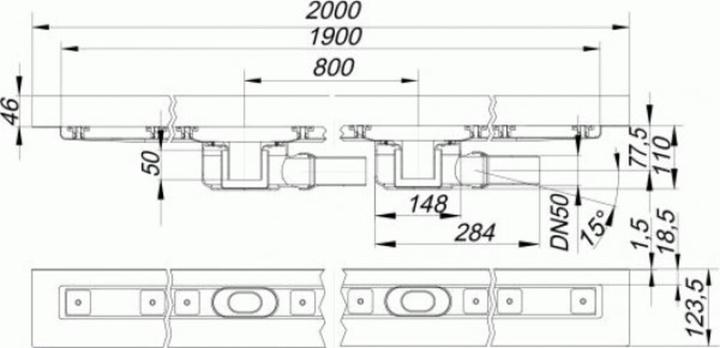

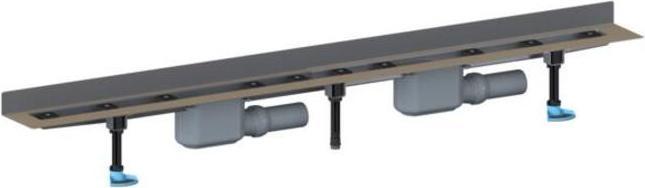

Dallmer shower channel CeraLine W 1900 is a linear drainage system made of stainless steel 1.4301 for wall mounting. It features height-adjustable adjusting screws for covers measuring 1900 x 40 mm. The channel body, with a self-cleaning effect due to its internal slope, has installation dimensions of 2000 mm x 124 mm and a width of 50 mm. It includes a sanded flange for the safe addition of composite seals according to ZDB guidelines, sound insulation mounting feet for height adjustment, sound-insulating wall mountings, sound insulation tape, and butyl sealing tape for building protection. The tile stop ensures even tile laying, and fixing aids are provided for tile edging profiles. The system comes with two pre-assembled drain housings made of PP and a lateral drainage connection DN 50 with a ball joint that allows for 0-15 degrees adjustment, along with an odor and cleaning lock. The drainage capacity is 1.4 l/s.
