Busch-Jaeger Central disk

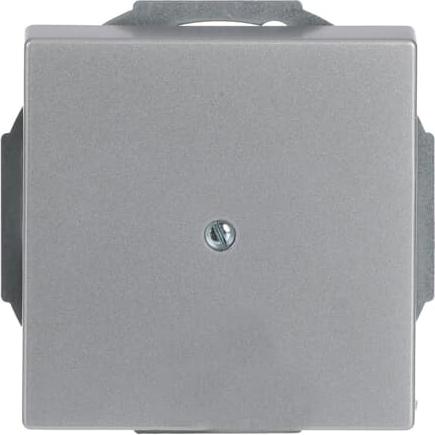

Busch-Jaeger central plate alusi 1749-83

Manufacturer: Busch-Jaeger
Designation: Central plate alusi with support for lighting outlet
Type: 1749-83
Assembly: Control element
Usage: Line outlet
Support ring: Yes
With dust protection: No
With hinged cover: No
Direction of outlet: Straight
Labeling field: Without labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Painted
Finish: Matt
Color: Aluminium silver
RAL number (similar): 9006
Transparent: No
Mounting type: Claw/screw mounting
Number of modules (for modular design): 1
With sockets/couplings: No
With strain relief: Yes
Sockets shielded: No
Housing shielded: No
Luster terminal: No
Suitable for protection class (IP): IP20

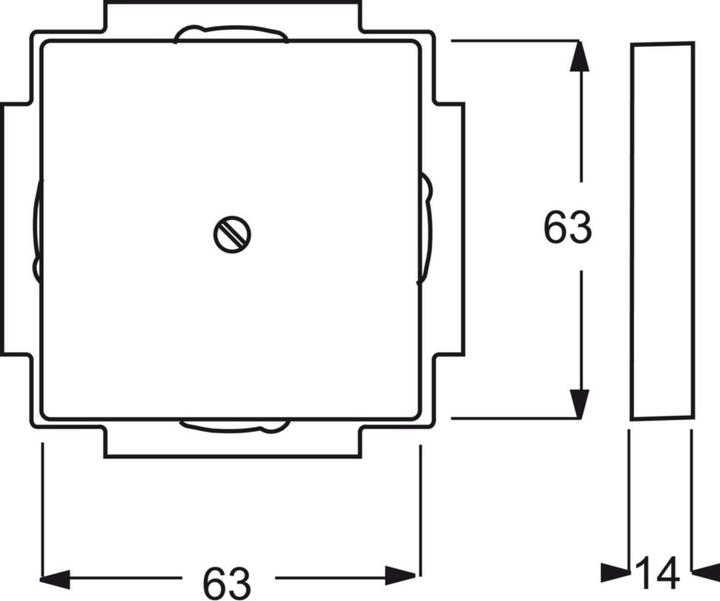

Device width: 71 mm
Device height: 71 mm
Device depth: 32 mm
Min. depth of device box: 40 mm

Busch-Jaeger central plate alusi 1749-83 serves as a cover for cable outlet with strain relief (without terminal block). The central disc can also be used individually as a cover for telephone connector boxes.
EAN: 4011395074541.
