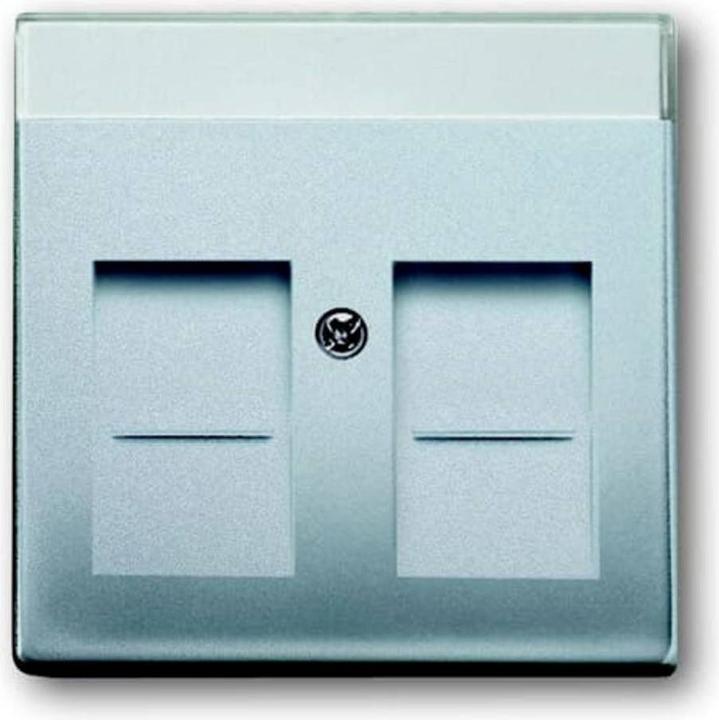

Busch-Jaeger Central disk

Busch-Jaeger Central Plate Alusi 1800-83

Manufacturer: Busch-Jaeger
Designation: Central Plate Alusi Mod. Jack, 2Ö, Description.
Type: 1800-83
Composition: Control Element
Usage: Modular Jack
Mounting Ring: yes
With Dust Protection: yes
With Flip Cover: no
Outlet Orientation: straight
Labeling Field: with labeling field
With Print: no
Mounting Type: Flush-mounted
Material: Plastic
Material Quality: Thermoplastic
Halogen-free: yes
Antibacterial Treatment: no
Surface Protection: painted
Surface Finish: matte
Color: Alu Silver
RAL Number (similar): 9006
Transparent: no
Mounting Type: Screw fastening
Number of Modules (for modular construction): 1
With Sockets/Couplings: no
Suitable for Number of Sockets/Couplings: 2
With Strain Relief: no
Shielded Sockets: no
Shielded Housing: no
Terminal Block: no
With Lighting: no
Suitable for Protection Class (IP): IP20
Device Width: 63 mm
Device Height: 63 mm
Device Depth: 13.1 mm
Min. Depth of Device Box: 32 mm

Busch-Jaeger Central Plate Alusi 1800-83: Additional Details
As a cover for 2 modular jack inserts. With opening slider. With labeling field 60.2 x 9.2 mm. Only suitable for item numbers 1810, 1812, 1814, 1816, 1818, 1819, and 1820. Platform 63, future® linear, Busch-axcent®. Busch-axcent®, Busch-axcent® pure: 60 x 9 mm. EAN: 4011395074657.
