Busch-Jaeger Central disk

Busch-Jaeger central plate dav/sws 2533-84

Manufacturer: Busch-Jaeger
Designation: Central plate dav/sws 22.5mm
Command devices type: 2533-84
Composition: Basic element with central cover plate
Usage: Drilling
Support ring: Yes
With dust protection: No
With hinged cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Color: Studiowhite
RAL number (similar): 9016
Transparent: No
Mounting type: Mounting with screw
Number of modules (for modular design): 1
With sockets/couplings: No
Suitable for number of sockets/couplings: 1
With strain relief: No
Sockets shielded: No
Housing shielded: No
Luster terminal: No
Suitable for protection class (IP): IP20

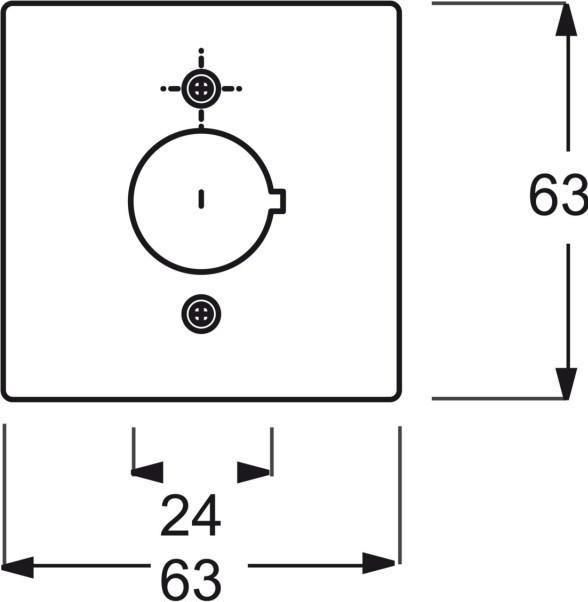

Device width: 71 mm
Device height: 71 mm
Device depth: 32 mm
Min. depth of device box: 40 mm

Further details: With screw fixing. Fastening with central locking nut. As cover for command devices with 22.5 mm diameter. Without spreader.
EAN: 4011395065679.
