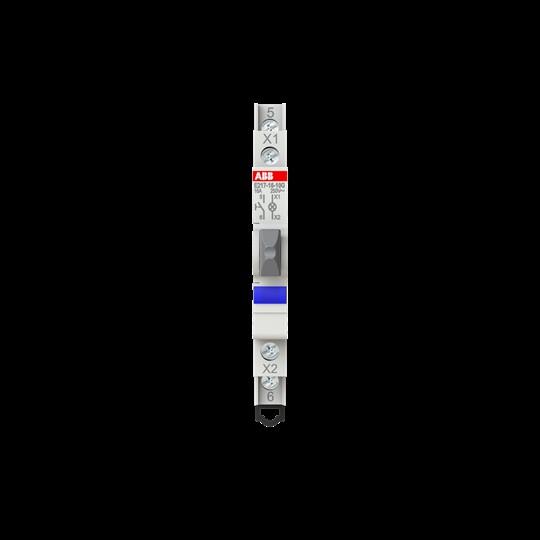

ABB STOTZ-KONTAKT E217-16-10G Circuit breaker

ABB Stotz S&J Push Button E217-16-10G

Manufacturer: ABB Stotz S&J
Description: Blue push button
Type: E217-16-10G
Number of contacts as normally open: 1
Switching current: 16 A
Switching voltage: 250 V
Voltage type: AC
With signal lamp: yes
Color of the dome: blue
Light source: LED
Lamp base: other
Max. lamp power: 1.5 W
Lamp voltage: 230..250 V
Color of the button: blue
Width in pitch units: 0.5
Installation depth: 68 mm
Protection class (IP): IP20

The push buttons with LED are equipped with one contact (normally open or normally closed). The different colors of the LED lights are based on DIN60204-1 (Color coding of control elements and their meaning). The module width is always 9 mm (0.5 pitch units). The push buttons with LED are excellent for signaling or indicating the operational status of the connected consumers.
