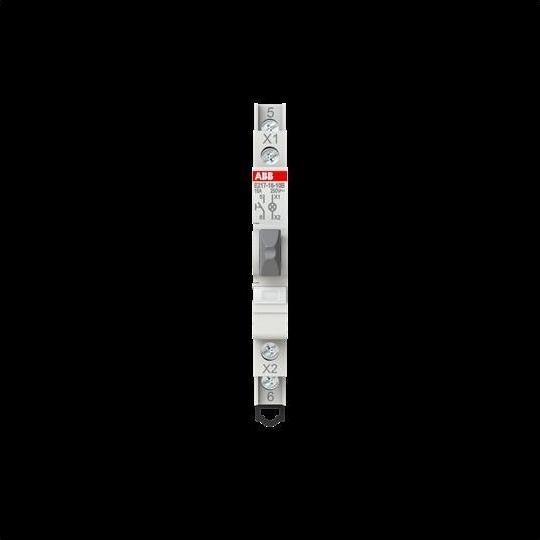

ABB STOTZ-KONTAKT E217-16-10B Circuit breaker

ABB Stotz S&J Illuminated Push Button E217-16-10B

Manufacturer: ABB Stotz S&J
Description: Illuminated push button white
Type: E217-16-10B
Number of contacts as normally open: 1
Switching current: 16 A
Switching voltage: 250 V
Voltage type: AC
With signal lamp: yes
Color of the dome: white
Light source: LED
Lamp base: other
Max. lamp power: 0.72 W
Lamp voltage: 48 V
Color of the button: white
Width in pitch units: 0.5
Installation depth: 68 mm
Protection class (IP): IP20

The push buttons with LED are equipped with one contact (normally open or normally closed). The different colors of the LED lights are based on DIN60204-1 (Color coding of control elements and their significance). The module width is always 9 mm (0.5 pitch units). The push buttons with LED are excellent for signaling or providing feedback on the operational status of the connected consumers.
